The intersection of civil infrastructure and hydrological management has undergone a profound transformation, moving away from the rigid, exclusionary designs of the mid-twentieth century toward a more integrated, porous reality. Top Water Management Projects Paving America. This “shield” methodology served a specific purpose during the era of rapid motorization, providing stable, high-velocity transit corridors.

Today, the concept of integrating advanced water management directly into the structural layers of our roads, driveways, and plazas represents the most significant shift in urban planning in generations. We are witnessing the maturation of technologies that allow the ground to retain its structural load-bearing capacity while regaining its natural function as a biological filter. This dual-purpose infrastructure is no longer a luxury for specialized ecological enclaves; it is becoming a foundational requirement for cities facing the realities of “flashy” precipitation patterns and the heat-island effects of traditional hardscaping.

The complexity of these systems demands an analytical depth that exceeds the typical architectural summary. To understand the current landscape of American water management, one must look beneath the surface at the mineralogical layering, the geotechnical fabric, and the hydraulic reservoirs that define modern “porous” infrastructure. This editorial analysis serves as a definitive reference for the systemic evolution of these assets, exploring how the marriage of civil engineering and hydrology is creating a new, resilient baseline for the American built environment.

Understanding “top water management projects paving america”

To evaluate the current state of top water management projects paving america, one must move beyond the aesthetic surface of “green” parking lots and examine the systemic intent of these installations. The term refers to the high-performance synthesis of paving and infiltration—a subterranean architecture where every square foot of hardscape acts as a primary intake valve for the local watershed.

In the context of national infrastructure, the top water management projects paving america are those that successfully balance high-volume traffic loads with the delicate requirements of soil percolation. This involves a radical departure from traditional “road base” logic, replacing fine-heavy gravel with open-graded aggregates that maintain a 40% void space even under the compression of heavy freight.

Furthermore, the comparison of these projects requires a forensic look at “Lateral Migration Control.” In a traditional road, water is shed to the sides. In an integrated system, water is encouraged to move vertically. The risk of oversimplification arises when planners fail to account for the “Saturation Zone” of the surrounding native soil. If the integrated pavement is built in an area with a high groundwater table, the system ceases to be an infiltration tool and becomes a subterranean bathtub, potentially destabilizing the very road it was meant to support.

The Systemic Evolution of Porous Hardscaping

The history of paving in America can be viewed as a slow pendulum swing from the “Natural Porosity” of the 19th-century cobblestone to the “Total Sealing” of the 20th-century interstate era, and now back toward “Managed Infiltration.” This led to the creation of the modern “impervious desert” found in most American suburbs.

The current “Integrated Era” began in earnest in the early 2000s, spurred by the EPA’s Clean Water Act mandates and the rising costs of traditional “Gray Infrastructure” (concrete pipes and treatment plants). This trajectory reflects a move away from the road as a passive slab and toward the road as a functional utility, capable of sequestering carbon, reducing urban temperatures, and recharging aquifers simultaneously.

Conceptual Frameworks and Hydrological Mental Models

Engineers and urban hydrologists utilize several mental models to diagnose and design integrated paving systems:

• The “Vertical Sponge” Model: This model treats the entire road assembly—from the surface paver down to the native soil—as a single, three-dimensional filter. The goal is to maximize the time water spends within the mineral matrix to ensure pollutants are broken down by aerobic bacteria.

• The “Void-Ratio Efficiency” Model: This focuses on the physics of the stone. It assumes that the strength of the road is provided by the “Point-to-Point” contact of the large aggregates, while the “Storage” is provided by the empty spaces between them.

Key Categories of Integrated Infiltration Systems

The selection of an integrated paving solution depends on the specific traffic volume and the “Sediment Profile” of the surrounding environment.

Comparison of Integrated Paving Architectures

System Type	Structural Load Rating	Void Space Efficiency	Siltation Risk	Best Context
PICP (Interlocking Pavers)	High (H-20 Loading)	Moderate	High	Commercial Plazas
Open-Graded Asphalt	Moderate	Low (15-20%)	Very High	Low-speed Residential
Pervious Concrete	Moderate	Moderate	High	Walkways / Shoulders

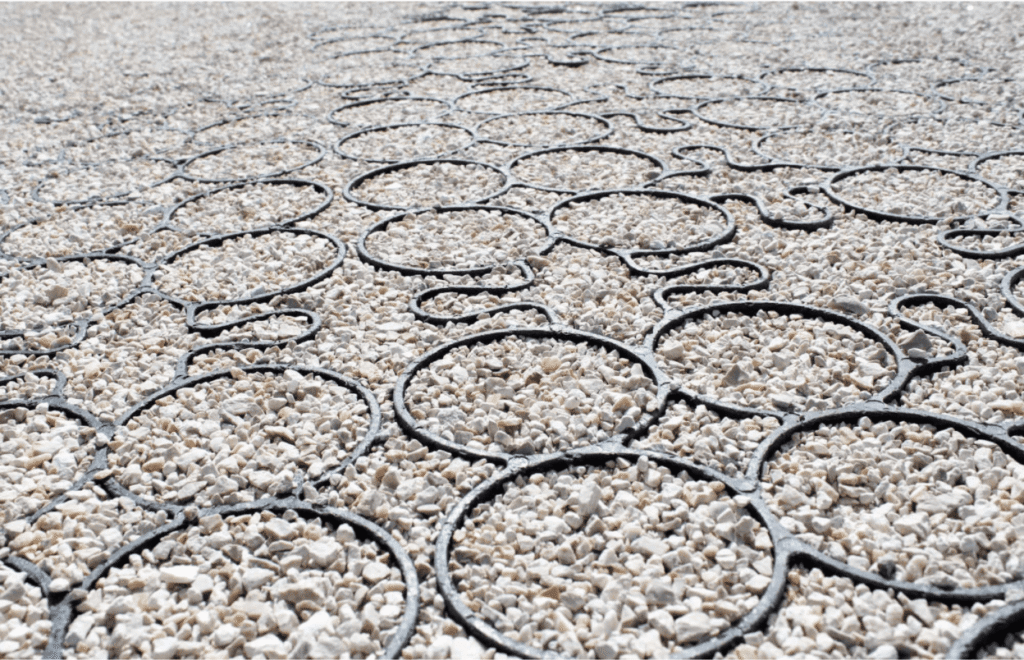

Plastic Geocells	High (Fire Lanes)	Exceptional (95%+)	Low	RV Parking / Slopes
Open-Joint Aggregate	Low	High	Moderate	Residential Driveways

Realistic Decision Logic

The decision to implement one over the other usually hinges on “Surface Shear.” For areas where vehicles are making tight, frequent turns (like a busy delivery bay), PICP systems are superior because the interlock prevents the individual units from shifting. In contrast, for large, straight expanses of parking, plastic geocells filled with gravel offer the highest infiltration rates at the lowest capital cost.

Detailed Real-World Scenarios and Decision Logic Top Water Management Projects Paving America

Scenario A: The Urban “Heat Island” Retrofit

A city-center plaza previously paved in dark asphalt.

• The Challenge: Extreme runoff and surface temperatures exceeding 140°F.

• The Plan: Implementation of light-colored top water management projects paving america utilizing high-albedo permeable pavers.

• Decision Point: Choosing a “Sacrificial Sand” in the joints that can be easily vacuumed and replaced, ensuring the system remains porous despite urban dust.

Scenario B: The Sloped Multi-Family Driveway

A driveway with an 8% grade in a region with heavy seasonal rain.

• The Challenge: Water accelerates across the surface, bypassing the infiltration pores.

• The Plan: A “Terraced Base” design where subterranean check-dams of non-porous soil or concrete are placed every 10 feet within the stone reservoir to slow the vertical and lateral movement of water.

Planning, Cost Architecture, and Resource Dynamics

The economic profile of integrated paving is characterized by higher upfront “Material Complexity” but lower “Downstream Liability.”

Range-Based Resource Allocation (Installed per Sq. Ft.)

Component	Traditional Asphalt	Integrated (PICP)	Geocell (Gravel)
Excavation Depth	8″ – 12″	18″ – 30″	12″ – 18″
Base Aggregate (Washed)	$2.00 – $4.00	$6.00 – $10.00	$4.00 – $7.00
Surface Layer	$4.00 – $6.00	$12.00 – $25.00	$2.00 – $6.00
Drainage Hardware	$5.00+ (Pipes)	$0.00	$0.00
Total Project	$11 – $22	$18 – $35	$8 – $20

The “Invisible Dividend”: By eliminating the need for detention ponds, curbing, and storm-sewer piping, a project that appears 50% more expensive on the surface often results in a 10% – 15% total site savings.

Tools, Strategies, and Support Systems

A resilient integrated pavement system relies on a specialized toolkit to ensure long-term functionality:

1. Regenerative Air Vacuums: Unlike standard sweepers, these use high-velocity air to “pull” silt out of the paver joints without damaging the stone base.

2. Non-Woven Geotextiles: These act as the “separation layer,” preventing the fine silts of the native subgrade from migrating upward into the clean stone reservoir.

3. Washed No. 57 Stone: The industry standard for the “Reservoir Layer,” providing the critical balance of load-bearing strength and void space.

4. Edge Restraints (Mechanical): Essential for permeable systems; without rigid concrete or steel perimeters, the “loose” aggregate base will cause the surface units to migrate.

5. Observation Wells: A simple PVC pipe extending to the bottom of the base, allowing managers to monitor “Drawdown” rates after a storm.

Risk Landscape: Failure Modes and Compounding Effects

The taxonomy of failure in integrated paving is almost always linked to “Systemic Blinding.”

• The Siltation Cascade: Fine organic matter (leaves, grass clippings) breaks down in the joints. If not removed, it creates a waterproof “mat” that turns a permeable surface into an impervious one.

• Structural Rutting: If the stone base is not “angular” enough, the stones will roll over each other like ball bearings, causing the surface to deform under wheel loads.

Governance, Maintenance, and Long-Term Adaptation

An integrated paving asset is a “living” civil utility. Treating it like traditional asphalt—with total neglect—is a guarantee of failure within five years.

• Annual Infiltration Audits: Pouring a specific volume of water on the surface to time the “disappearance” rate.

• Joint Refreshing: For PICP systems, the “jointing stone” is the primary filter. It must be replaced if it becomes saturated with oil or silt.

• Winter Adaptation: Using “Poly-Edge” plow blades to prevent catching the edges of pavers, and avoiding the use of sand for traction (which immediately clogs the pores).

Measurement, Tracking, and Evaluation Metrics

The success of the most effective water-integrated infrastructure is measured through three primary signals:

1. Hydraulic Conductivity (k): Measured in inches per hour. A healthy system should swallow at least 50 inches per hour, even after several years of use.

2. Void Ratio Stability: Tracking whether the “Reservoir Layer” is maintaining its 40% capacity or if it is being slowly filled with migrating subsoil.

3. TSS Removal Rate: Measuring the Total Suspended Solids in the water that leaves the system via the underdrain versus the water that entered the surface.

Common Misconceptions and Oversimplifications

• Myth: “The water just stays there and smells.” Correction: A properly designed system drains into the soil or an underdrain within 48 hours, preventing anaerobic conditions.

• Myth: “Weeds grow through the pavement.” Correction: Weeds grow down into the joints from wind-blown seeds; they do not grow up from the soil. Regular maintenance prevents this.

Ethical, Practical, and Contextual Considerations

The implementation of integrated paving is a matter of “Site-Specific Ethics.” By managing runoff on-site, a property owner reduces the burden on municipal infrastructure, which is often a significant cost for lower-income taxpayers.

Synthesis: The Future of American Pavement Infrastructure

The trajectory of the American built environment is moving toward a state of “Functional Transparency,” where our roads and plazas no longer hide the hydrological cycle but facilitate it. As we continue to refine the top water management projects paving america, we are moving closer to a civil engineering baseline that respects the native sponge-like behavior of the earth.

The future of the field lies in the integration of “Carbon-Negative” concrete and “Bio-Remediating” aggregates that can actively digest hydrocarbons within the stone matrix.
