Top Permeable Driveway Plans: A Definitive Engineering Reference

The modern driveway has historically been viewed as a static slab—a utilitarian necessity designed to facilitate the movement and storage of vehicles while shielding the underlying soil from moisture. Top Permeable Driveway Plans. However, as municipal infrastructures struggle under the weight of increasing urban density and intensified meteorological events, the traditional impervious driveway is increasingly viewed as a liability. The accumulation of localized runoff contributes significantly to the “first flush” phenomenon, where pollutants from automotive surfaces are swept directly into storm drains and local waterways without natural filtration.

Shifting toward infiltration-ready surfaces represents more than a change in material; it is a fundamental reassessment of how a private property interacts with the broader hydrological cycle. By re-engineering the ground to act as a functional sponge rather than a repellent shield, property owners can mitigate flash flooding, recharge local aquifers, and reduce the urban heat island effect. This transition requires a departure from simple “paving” toward the discipline of site-specific water management.

Navigating the complexities of high-performance infiltration systems demands an understanding of civil engineering principles, soil mechanics, and long-term material behavior. The following analysis serves as a definitive reference for those looking to move beyond surface-level aesthetics toward deep structural and hydrological integrity.

Understanding “top permeable driveway plans”

When evaluating top permeable driveway plans, the primary pitfall is the assumption that a single material choice constitutes a complete plan. In reality, a permeable driveway is a multi-layered assembly where the visible surface is often the least complex component. A professional-grade plan must integrate surface permeability, sub-base reservoir capacity, and native soil infiltration rates into a singular, cohesive system. “Top” plans are those that calibrate these variables based on the specific “design storm” of a region—the maximum amount of rainfall the system is expected to handle within a 24-hour period.

A common misunderstanding involves the confusion between “porous” materials and “permeable” systems. Porous asphalt or pervious concrete allows water to pass through the material’s internal cellular structure. In contrast, permeable interlocking concrete pavers (PICP) rely on engineered gaps between solid units. High-performance plans often favor the latter for residential use because they are easier to maintain over decades; should the system clog, the joint aggregate can be replaced without replacing the entire driveway.

Furthermore, the complexity of a plan increases with the presence of slopes or expansive clay soils. In these contexts, the “plan” must include subterranean benched dams or perforated overflow pipes to prevent the system from becoming a destabilized, saturated mass. Evaluating these plans requires looking beyond the brochure and into the cross-sectional engineering drawings that dictate how water will move once it disappears from sight.

The Evolution of Residential Surface Design

The history of residential paving has moved through three distinct eras. The Pre-Industrial era relied on natural earth and loose aggregates—functional for light traffic and naturally pervious, but prone to erosion and mud. The 20th-century Industrial era introduced the “Seal and Shed” philosophy, utilizing asphalt and poured concrete to create high-speed, low-maintenance surfaces that redirected 100% of precipitation into municipal pipes.

The current Ecological era, characterized by the rise of Source Control, recognizes that the “Seal and Shed” model is economically unsustainable. As city sewers reach capacity, municipalities are increasingly taxing “impervious surface area.” This has sparked a return to masonry-based infiltration, now supported by 21st-century geotextiles and polymer binders. Modern designs are no longer just surfaces; they are decentralized water treatment and storage facilities hidden in plain sight.

Mental Models for Hydrological Planning

To effectively assess a site, engineers often utilize specific mental models that frame how the system will function over its lifespan:

1. The Reservoir Model: This treats the driveway as a subterranean tank. The goal is total retention—every drop of water that hits the surface is stored in the stone sub-base until it can soak into the ground. It is limited by the “drawdown time” of the native soil.

2. The Slow-Motion Model: Used primarily in clay-heavy regions, this model acknowledges that the soil won’t take much water. Instead, the driveway acts as a “buffer,” holding the water to slow its entry into the storm drain, effectively shaving the peak off a heavy rain event.

3. The Bio-Filter Model: Here, the focus is on water quality. The layers of stone and geotextiles are intended to trap hydrocarbons and heavy metals, cleaning the water before it reaches the water table.

Primary Permeable Categories and Material Trade-offs

Selecting the right material requires balancing load-bearing capacity against infiltration speed and maintenance discipline.

Comparison of Performance Dynamics

Material Type	Load Capacity	Infiltration Speed	Maintenance Requirement	Primary Failure Mode
PICP (Pavers)	Very High	High	Low to Moderate	Joint Siltation
Pervious Concrete	Moderate	Very High	High (Vacuuming)	Pore Collapse / Spalling
Porous Asphalt	High	High	Moderate	Raveling / Pore Closure
Plastic Grid	Low to Moderate	Extreme	Moderate (Grass/Gravel)	UV Degradation / Rutting

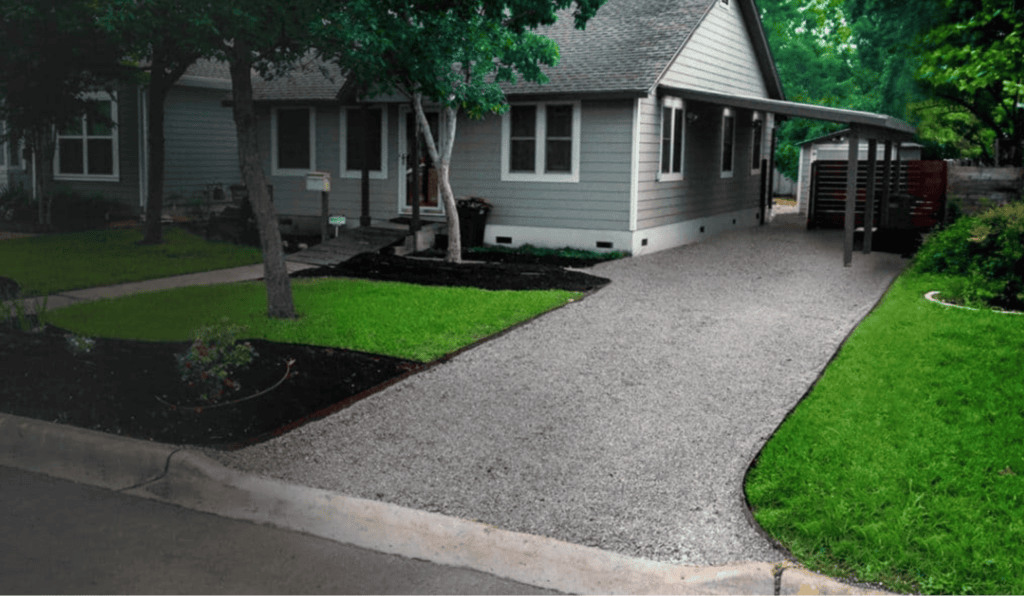

Open-Graded Stone	Low	Extreme	High (Replacement)	Displacement / Weed Growth

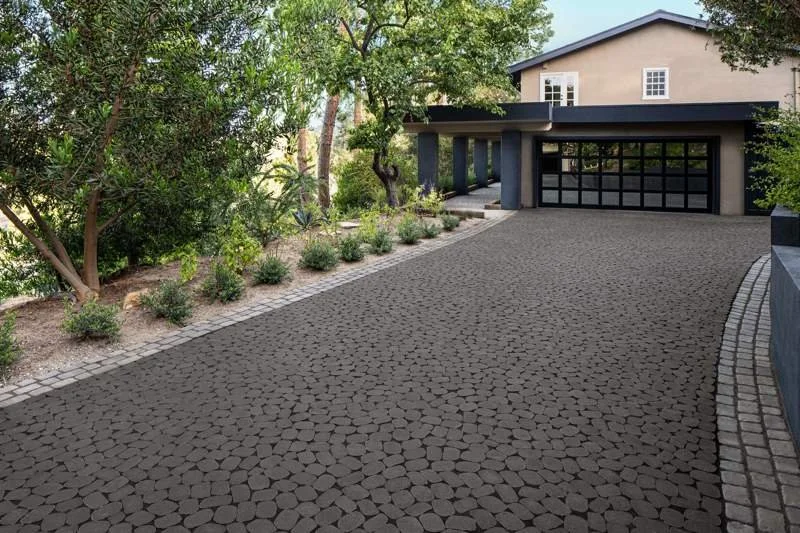

1. Permeable Interlocking Concrete Pavers (PICP)

The most resilient choice for luxury residential plans. By utilizing 80mm thick pavers with specialized joint aggregates (No. 8 or No. 9 stone), these systems can support the weight of heavy SUVs and delivery trucks without shifting. Their modular nature allows for easy repair of underlying utilities.

2. Pervious Concrete

A specialized mix that omits sand, creating a “rice krispie treat” texture. While it offers a monolithic look, it is highly sensitive to the installer’s skill. If the water-to-cement ratio is slightly off, the surface will either be too brittle or will “seal over” during the troweling process.

3. Cellular Confinement (Plastic Grids)

These hexagonal or square grids are filled with either gravel or grass. They are excellent for secondary parking or “green” driveways. However, in regions with high UV exposure, the plastic can become brittle over 15 years, and grass-filled versions rarely survive the compaction and heat of a daily-use vehicle.

Real-World Scenarios and Constraints Top Permeable Driveway Plans

Scenario A: The Sloped Terrain

On a 5% grade or higher, water within the sub-base will naturally migrate to the lowest point. A standard plan will result in a “blowout” at the bottom of the driveway. High-performance plans utilize subterranean check dams—concrete or plastic barriers that create tiered “cells” of water, forcing infiltration on the hillside rather than at the base.

Scenario B: The Expansive Clay Site

If the soil is “tight” (low percolation), the sub-base will stay saturated for too long, leading to a “pumping” effect that ruins the surface. The solution is an underdrain system—a perforated pipe placed 2 inches above the bottom of the reservoir that allows excess water to escape to a rain garden or dry well once the reservoir hits capacity.

Economic Dynamics and Resource Allocation

While the initial investment in a permeable system is higher than standard asphalt, the lifecycle cost often favors infiltration.

Range-Based Cost Allocation (Installed per Sq. Ft.)

Component	Cost Range (USD)	Variability Factor
Native Soil Prep	$3.00 – $6.00	Depth of excavation / Clay content
Sub-Base Aggregates	$4.00 – $7.00	Local availability of “clean” stone
Surface Layer	$8.00 – $22.00	Material choice (Grid vs. Paver)
Edge Restraints	$2.00 – $4.00	Concrete vs. Heavy-duty plastic

The “opportunity cost” of not using a permeable system often manifests in the need for expensive detention ponds elsewhere on the property or the potential for basement flooding due to mismanaged runoff.

Risk Landscape and Failure Modes

The primary threat to any top permeable driveway plans is siltation. This is the gradual accumulation of fine particles (sand, organic mulch, silt) that fill the voids of the system.

• Surface Clogging: Occurs when organic debris is allowed to decompose on the surface, turning into a “mat” that blocks water.

• Compaction Failure: If the sub-base is not “open-graded” (meaning it has no small fines), it will eventually settle or “pump” mud upward from the native soil if a geotextile is not used.

• Chemical Saturation: Permeable systems act as filters, but they have a limit. A massive oil leak can saturate the joint stone, requiring its removal to prevent groundwater contamination.

Governance, Maintenance, and Long-Term Adaptation

Maintenance for permeable systems is less frequent but more critical than for traditional surfaces. A layered checklist approach ensures longevity:

• Monthly: Visual inspection for weed growth and debris. Use a leaf blower to remove organic matter before it breaks down.

• Seasonally: Inspect joint stone levels in PICP. If the stone is more than 1/4 inch below the paver edge, top it up to prevent edge spalling.

• Annually: Perform an “infiltration test.” Pour 5 gallons of water in a 1-foot square; if it takes more than 30 seconds to disappear, the system needs professional maintenance.

• Decadal: For heavily used systems, a “regenerative air vacuum” may be required to pull deep-seated silt out of the joints.

Common Misconceptions and Oversimplifications

1. Myth: Permeable driveways freeze solid in winter. Correction: Because the water drains vertically, there is no surface water to freeze. These driveways actually require less salt and stay safer in winter than ice-slicked asphalt.

2. Myth: You can use standard “crusher run” gravel. Correction: Standard gravel contains “fines” that pack together and block water. Only “clean, open-graded” stone (ASTM No. 57 or No. 2) provides the necessary void space.

3. Myth: Geotextiles are optional. Correction: Without a non-woven geotextile between the native soil and the stone base, the heavy stone will eventually sink into the soil, and the soil will “wick” up into the stone, ruining the reservoir.

Synthesis and Strategic Conclusion

The adoption of top permeable driveway plans represents a shift from a “control” mindset to a “collaboration” mindset with the natural environment. While the engineering requirements are more stringent and the initial capital outlay is greater, the result is a piece of infrastructure that performs work for the property. It manages risk, protects the local ecosystem, and provides a durable, high-aesthetic surface that can last 30 to 50 years with proper care.

The most successful projects are those that recognize the driveway as a hidden utility—a sponge that protects the home while silently recharging the earth below. As climate volatility increases, these functional landscapes will transition from a luxury option to an essential standard of residential civil engineering.
