Permeable Pavement Plans: The Definitive Editorial & Engineering

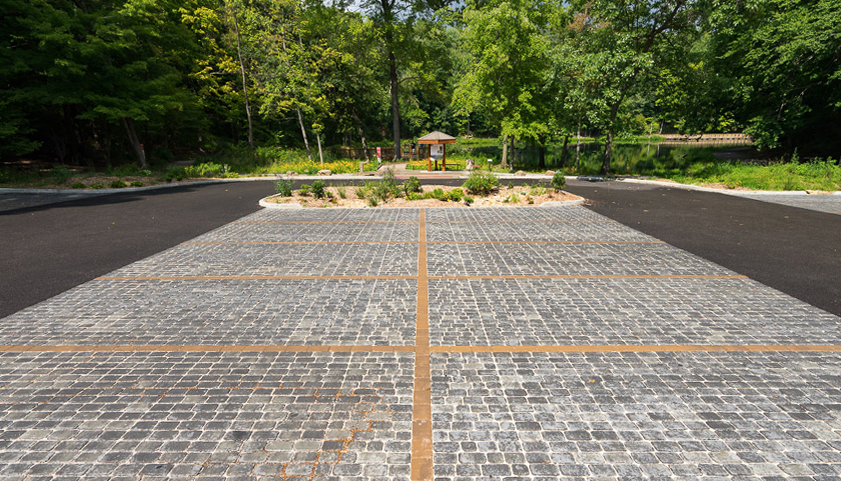

The modern built environment is currently undergoing a silent but significant reconfiguration. For the better part of a century, civil engineering was dominated by the principle of rapid redirection—the idea that rainfall was an external threat to be captured by catch basins and moved through concrete arteries as quickly as possible. Permeable Pavement Plans. This approach, while effective for maintaining dry transit in the short term, has inadvertently created a “hydrological deficit.” By sealing the earth’s surface, we have disconnected the atmosphere from the aquifer, leading to increased urban temperatures and the catastrophic failure of municipal drainage during high-intensity storm events.

Transitioning toward a sustainable infrastructure requires more than just better materials; it requires a fundamental shift in how we conceptualize the ground itself. Permeable systems represent a move from “resistance” to “reception.” These are not merely surfaces but complex subterranean reservoirs designed to manage water at the point of impact. The goal is to restore the natural water cycle while maintaining the structural integrity required for heavy vehicle loads. This balance is precarious and necessitates a level of planning that extends far beyond the surface-level aesthetics of a driveway or parking lot.

To execute a successful project, one must understand that a porous surface is an “active” technology. Unlike traditional asphalt, which is relatively passive until it cracks, a permeable system is constantly filtering, storing, and breathing. The integrity of this system depends on the synergy between geotechnical analysis, hydrological modeling, and material science. This article provides a definitive editorial exploration of the strategies, risks, and frameworks necessary to move from a conceptual interest in sustainability to the execution of high-performance, resilient surfacing.

Understanding “permeable pavement plans”

When professionals discuss permeable pavement plans, they are rarely referring to a simple architectural drawing. In a high-level engineering context, these plans represent a multi-disciplinary set of documents that include soil percolation reports, site-specific drainage calculations, and long-term maintenance covenants. A common misunderstanding among laypeople—and even some general contractors—is that permeability is a property of the paver alone. In reality, the paver is the “gatekeeper,” but the “plan” is the entire subterranean ecosystem.

A robust set of plans must address the “Void Space Ratio.” This is the calculated volume of air within the stone sub-base that acts as a temporary holding tank. If a plan fails to account for the “Design Storm” of a specific region—for instance, a 100-year rain event in the Pacific Northwest versus the Desert Southwest—the system will quickly transition from an asset to a liability. The risk of oversimplification here is high; simply swapping standard asphalt for porous materials without adjusting the sub-grade is a recipe for structural heaving and hydraulic backup.

Furthermore, the “plan” includes the jurisdictional compliance necessary to meet local Stormwater Management (SWM) credits. In many American municipalities, these plans are legal documents that, if followed, allow a developer to bypass the need for traditional retention ponds. This makes the accuracy of the plans a critical factor in the “Net Buildable Area” of a property. Understanding the interplay between the ASTM standards for infiltration and the local building code is the first step in moving beyond superficial “green” labels toward true infrastructural resilience.

Deep Contextual Background: The Evolution of Porous Systems

The history of paving in the United States is intrinsically linked to the rise of the automobile. Early 20th-century paving was focused on dust suppression and “all-weather” access, which naturally favored the impermeability of bitumen and Portland cement. However, the environmental consequences of this “sealing” became apparent by the 1970s. The Clean Water Act served as a catalyst, forcing municipalities to confront the “First Flush” pollution—the toxic slurry of heavy metals and oils that washes off standard roads during the first thirty minutes of a storm.

The late 1990s and early 2000s saw the emergence of Low-Impact Development (LID). This movement sought to decouple development from environmental degradation. Permeable paving was the flagship technology of this era, though early iterations often suffered from “clogging” issues due to a lack of understanding regarding maintenance. We have now entered what is known as the “Regenerative Era,” where surfacing is expected to do more than just drain; it is expected to cool the air, filter pollutants through microbial action in the stone base, and potentially even harvest rainwater for greywater reuse.

Conceptual Frameworks and Mental Models

To evaluate the success of a paving project, senior editors and engineers often utilize specific mental models to navigate the complexity.

1. The “Sponge” vs. “Sump” Framework

This model asks whether the system is designed for infiltration (water moving into the groundwater table) or detention (water being stored and then slowly released into a pipe). On sandy soils, the sponge model is ideal. On heavy clay, the “sump” model—utilizing an underdrain—is a mechanical necessity to prevent the sub-grade from becoming a saturated, unstable “soup.”

2. The Total Suspended Solids (TSS) Filter Model

This framework views the paving joints as a mechanical filter. Most pollutants are attached to fine sediment. By capturing the sediment in the top inch of the joint aggregate, the system prevents toxins from entering the sub-base. The limit of this model is that it assumes the surface will be cleaned; if the “filter” is full, the water simply bypasses it, causing surface runoff.

3. The Structural Bridge Model

In high-traffic areas, one must view the pavers not as a floor, but as a bridge. The load of a vehicle must be distributed across the “clean” (gap-graded) stone base, which lacks the fine binders of traditional road base. This model prioritizes the “Interlock” of the paver shapes, favoring L-shaped or T-shaped units over simple rectangles to prevent “creeping” or “rotation” under torque.

Key Categories and Variations

Successful permeable pavement plans generally select from one of five primary material archetypes, each with distinct structural and hydrological trade-offs.

Category	Material Matrix	Infiltration Method	Load Capacity
PICP	Concrete Units	Aggregate-filled joints	Very High (Trucks/Plazas)
Pervious Concrete	Open-pore cement	Through the material	Moderate (Walks/Parks)
Porous Asphalt	Reduced-fines bitumen	Through the material	Moderate (Low-speed roads)
Plastic Grids	Recycled HDPE	Open cells (Grass/Stone)	Low to Moderate
Resin-Bound	Bio-resin + Stone	Through the material	Pedestrian / Light Vehicular

Decision Logic: The Site-First Approach

The “best” material is a function of the Infiltration-to-Maintenance Ratio. For instance, in an urban infill project where vacuum-sweeping is easy, PICP is the gold standard due to its longevity. In a remote nature trail where aesthetic blending is paramount, a resin-bound or plastic grid system filled with local gravel may be more appropriate despite a lower load capacity.

Detailed Real-World Scenarios Permeable Pavement Plans

Scenario A: The High-Density Residential Courtyard

In a project where every square foot of land is at a premium, a developer might use the courtyard as the primary stormwater facility.

• Constraint: High pedestrian traffic and the need for ADA (Americans with Disabilities Act) compliance.

• Decision Point: Selecting “micro-gap” pavers that provide high infiltration but keep joints narrow enough to prevent high-heel snags.

• Failure Mode: “Joint migration”—if the aggregate in the joints is too fine, it can wash out, causing the pavers to become loose and create a trip hazard.

Scenario B: The Logistics Center Loading Dock

• Constraint: Constant “shunting” and turning of heavy 18-wheelers.

• Decision Point: Using heavy-duty 100mm-thick interlocking pavers with a “staggered” laying pattern to resist lateral forces.

• Second-Order Effect: The lighter color of the concrete pavers reduces the “Heat Load” on the refrigerated trucks parked above, lowering their fuel consumption for cooling.

Planning, Cost, and Resource Dynamics

The financial architecture of permeable paving is often misunderstood. While the “sticker price” of the materials and specialized labor can be 20% to 50% higher than standard asphalt, the holistic cost is frequently lower.

Cost Component	Range (USD per Sq Ft)	Variability Factors
Excavation & Sub-base	$6.00 – $12.00	Soil depth, Rock removal
Paver/Material Cost	$5.00 – $18.00	Finish, Thickness, Brand
Installation Labor	$8.00 – $20.00	Pattern complexity, Edge restraints
Avoided Infrastructure	($5,000 – $50,000)	Elimination of ponds/pipes

The Opportunity Cost of Land

The most significant economic driver is the Reclaimed Land Value. In most jurisdictions, a traditional parking lot requires a dedicated percentage of the lot for a retention pond. By integrating the pond into the driveway via permeable systems, that land can be converted into additional units, more parking, or functional green space, often yielding a massive return on investment that far outweighs the higher paving cost.

Risk Landscape and Failure Modes

A taxonomy of failure in permeable systems reveals that the surface is rarely the problem; it is almost always the “boundary layers.”

1. Sub-grade Compaction: If the native soil is over-compacted during excavation, its infiltration rate drops to zero. The system becomes a “bathtub,” holding water against the foundation of nearby buildings.

2. Fines Migration: If a geotextile fabric is not used (or the wrong type is used) between the stone base and the native soil, the soil “fines” (silt/clay) will eventually migrate upward into the stone, “blinding” the reservoir and ending its drainage life.

3. Lateral Displacement: Unlike asphalt, which is a glue-like slab, pavers are individual units. Without a robust, cast-in-place concrete edge restraint, the pavers will eventually “drift” outward under the weight of traffic, causing the joints to open and the system to unravel.

Governance, Maintenance, and Long-Term Adaptation

The longevity of a permeable system is a matter of governance, not just durability. A property owner must view the surface as a “living filter” that requires a specific review cycle.

The Stewardship Checklist

• Annual Regenerative Air Vacuuming: This is the most critical maintenance task. A standard street sweeper is insufficient; a regenerative air truck uses high-pressure air to “blast” the dust out of the joints and suck it away.

• Post-Storm Inspection: After a “Design Storm” event, the surface should be checked for “ponding.” If water remains on the surface for more than 30 minutes, it indicates a localized clog.

• Joint Replacement: Every 5–7 years, some of the joint aggregate may need to be replaced if it has become compacted or contaminated with organic matter.

Measurement, Tracking, and Evaluation

How do we prove a project is working? We move from qualitative “it looks dry” to quantitative “leading indicators.”

• Infiltration Rate (Leading Indicator): Measured in inches per hour using a double-ring infiltrometer (ASTM C1701). A new system might handle 500 inches/hour; if it drops below 50, a deep-clean is mandatory.

• Surface Temperature Delta (Lagging Indicator): Measuring the temperature of the permeable area versus a nearby asphalt strip. A successful “eco” surface should be 10–20 degrees cooler on a peak summer day.

• Documentation Example: A “Pavement Lifecycle Log” that tracks the date of every vacuuming session and the volume of sediment removed. This data is increasingly required for municipal stormwater tax rebates.

Common Misconceptions and Oversimplifications

• Myth: Permeable pavers are illegal in cold climates because they freeze. Correction: They are actually superior in cold climates. Because the water drains immediately, there is no surface water to turn into “Black Ice.” The air pockets in the stone base act as an insulator, often melting snow faster than solid concrete.

• Myth: You can’t plow them. Correction: You can, provided the plow blade has a rubber “poly” edge and the pavers were installed with beveled (chamfered) edges to prevent catching.

• Myth: The weeds will take over. Correction: Weeds grow from the top down (seeds landing in dirt), not the bottom up. If the system is vacuumed and the joints are kept clean, there is no soil for weeds to take root in.

• Myth: It’s just for “green” people. Correction: It is a financial tool for developers to maximize buildable land and reduce drainage tax liabilities.

Ethical and Contextual Considerations

The deployment of permeable pavement plans is not just an engineering choice; it is an act of “Hydro-Social Responsibility.” In many urban centers, the lack of permeable surfaces in low-income neighborhoods leads to higher “Heat Index” ratings and more frequent basement flooding. By prioritizing permeability in urban infill projects, we contribute to “Environmental Justice”—ensuring that the built environment does not exacerbate the vulnerabilities of the local population.

Conclusion: The Resilient Surface

The future of American infrastructure is not solid; it is porous. As we move further into a century defined by climate volatility, the ability of our cities to “breathe” and “absorb” will be the primary measure of their resilience. The move toward permeable systems represents a maturation of our design philosophy—a recognition that we cannot engineer our way out of the water cycle, but we can engineer our way into it.

Success in this field requires patience and intellectual honesty. It requires admitting that a surface is never truly “finished,” but is instead a managed asset that requires ongoing stewardship. For the developer, the architect, and the homeowner, the shift to permeability is an investment in the long-term viability of the land itself.
