How to Avoid Gravel Migration Risks: The Definitive Stability Guide

The utilization of loose aggregate in landscape architecture—ranging from the rustic charm of pea gravel to the structural utility of crushed basalt—offers a rare combination of permeability and aesthetic versatility. However, the inherent fluidity of these materials introduces a persistent engineering challenge: the horizontal and vertical displacement of stone. Known technically as aggregate drift or “migration,” this phenomenon is more than a localized nuisance of tidiness. How to Avoid Gravel Migration Risks. It represents a progressive failure of the site’s structural integrity, leading to sub-grade exposure, increased maintenance overhead, and a compromised hydrological profile.

To master the stability of these surfaces, one must view a gravel installation not as a static layer of stone, but as a dynamic system of friction and containment. The forces acting upon these surfaces are multi-axial. Lateral shear from turning vehicle tires, the gravitational pull of sloped gradients, and the hydraulic energy of stormwater runoff work in concert to redistribute material. When an installation fails, it is rarely due to the stone itself; rather, it is a failure of the “confining environment” designed to hold that stone in place.

Strategic site development requires an editorial level of scrutiny regarding the interplay between stone shape, compaction density, and containment technology. A sophisticated approach moves beyond the superficial application of loose rock and delves into the physics of angular interlock and the chemistry of modern stabilizers. By examining the systemic causes of stone displacement, we can develop a definitive framework for creating “fixed” aggregate surfaces that maintain the benefits of permeability without the liabilities of constant replenishment and drift.

Understanding “how to avoid gravel migration risks”

To effectively address how to avoid gravel migration risks, it is necessary to deconstruct the mechanics of stone movement into two distinct categories: “Scattering” and “Sinking.” Scattering occurs when lateral forces (pedestrians, vehicles, or water) push stone across the surface and into adjacent lawns or drains. Sinking occurs when the aggregate is pressed vertically into the sub-soil, a process often accelerated by poor drainage or the absence of a separation layer. A multi-perspective explanation reveals that “best practice” involves creating a surface that behaves like a solid slab while retaining the microscopic void spaces of a loose material.

Common misunderstandings frequently center on the “Depth Fallacy.” It is often assumed that adding more gravel will solve the problem of migration. In reality, excessively deep gravel (typically anything over three inches) actually increases the risk of displacement. Deep, unconfined aggregate lacks internal friction, leading to “plowing”—the process where wheels sink into the stone and push it aside rather than rolling over the top. Therefore, high-performance plans focus on the “shallowing” of the aggregate layer combined with high-density confinement.

Oversimplification in this field also ignores the role of mineralogy and geometry. Rounded stones, like river rock or pea gravel, act like ball bearings; they move with the slightest application of pressure. Crushed stone, with its jagged, angular edges, provides “mechanical interlock,” where the facets of the stones wedge against one another. Understanding these risks requires a shift in perspective: from viewing gravel as a decorative topping to viewing it as a structural component of a hydraulic system.

The Systemic Evolution of Aggregate Stabilization

The history of gravel as a transit surface has transitioned from the “Loose-Pack” era of the 19th-century carriage drive to the “Engineered Cell” era of the 21st century. Historically, the solution to gravel migration was simply more labor—the constant raking and replenishment of paths by estate staff. This was sustainable only in an era of low-cost labor and minimal vehicular weights.

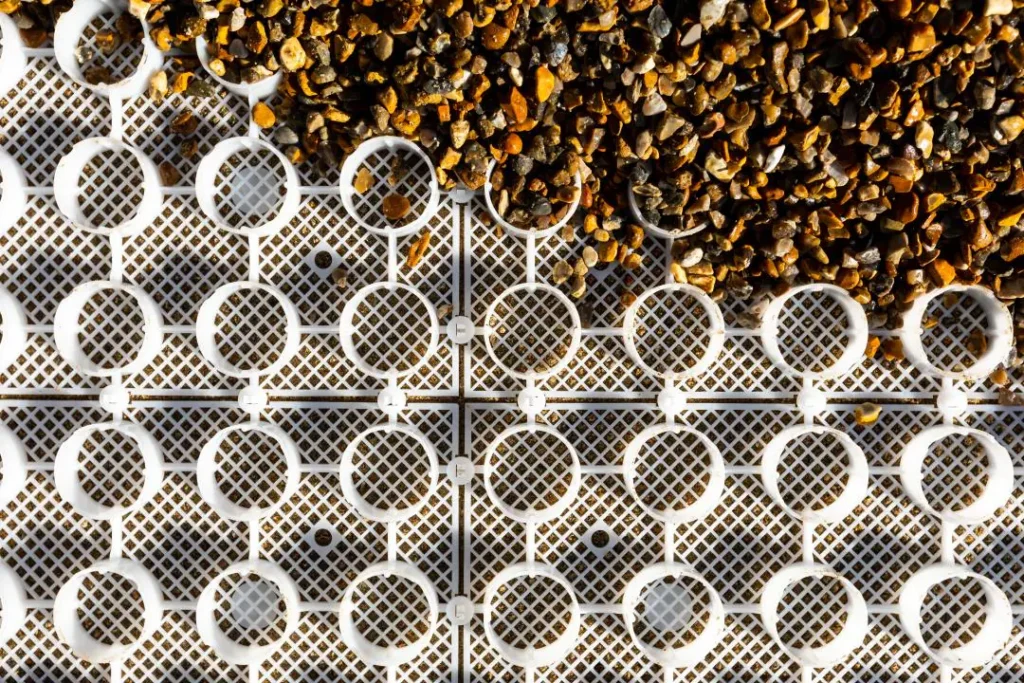

As the 20th century progressed and vehicles became heavier, the industry moved toward “Bituminous Stabilization” (tar and chip). While effective, this sacrificed the primary benefit of gravel: its permeability. Today, we are in the era of “Geocellular Confinement.” This contemporary stage leverages high-density polyethylene (HDPE) grids and advanced polymer binders to “lock” the stone in place. This evolution represents a fundamental shift toward the “Invisible Infrastructure” model, where the stability of the path is provided by a hidden skeleton, allowing the surface to remain aesthetically natural while functionally rigid.

Conceptual Frameworks and Mechanical Mental Models

When diagnosing a site for migration potential, engineers utilize specific mental models to categorize the forces at play:

• The “Ball Bearing” vs. “Jigsaw” Model: This model evaluates the friction potential of the stone itself. Rounded stones (ball bearings) have nearly zero internal friction, while angular stones (jigsaw pieces) have high potential for stability.

• The “Vertical Sieve” Framework: This focuses on the sub-surface. It views the interface between the gravel and the soil as a sieve. If the “holes” in the soil are larger than the stone fines, the gravel will migrate downward (sink).

• The “Horizontal Constraint” Model: This prioritizes the perimeter. It posits that aggregate is effectively a fluid; without a “container” (edging), it will flow to the point of least resistance.

Key Categories of Stabilization and Containment

Identifying the most effective intervention involves weighing the intended traffic load against the environmental context of the site.

Comparison of Aggregate Containment Systems

System Type	Primary Mechanism	Permeability	Traffic Rating	Longevity
Cellular Confinement (Grids)	Vertical Wall Support	100%	High (Vehicular)	Exceptional
Polymer Binders (Glues)	Chemical Bonding	60% – 80%	Moderate (Foot)	3 – 5 Years
Mechanical Edging (Steel)	Perimeter Blocking	100%	Moderate	High
Compacted Stone Dust (DG)	Fines Cohesion	30% – 50%	Low	Moderate
Resin-Bound Systems	Full Encapsulation	Low	High	Very High

Realistic Decision Logic

The selection of a system depends on the “Shear Potential.” If the surface will experience turning vehicles (like a turnaround or cul-de-sac), a cellular confinement grid is non-negotiable. Binders or simple edging will fail under the torque of a power-steering turn. Conversely, for a decorative garden path with only light foot traffic, high-quality steel edging combined with angular stone often provides sufficient stability at a lower capital cost.

Detailed Real-World Scenarios and Site Stressors How to Avoid Gravel Migration Risks

Scenario A: The Sloped Pathway (10% Grade)

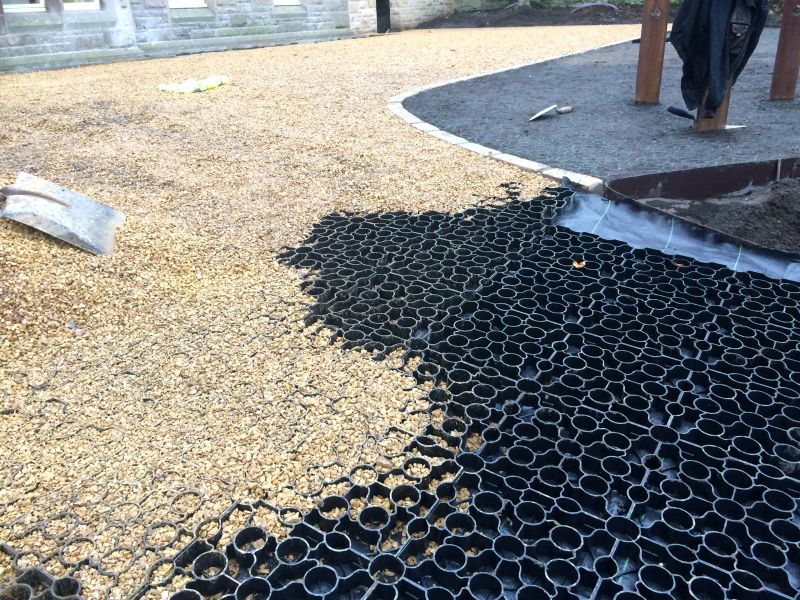

On a slope, gravity becomes the primary driver of migration. Every footfall or rain event pulls stone downhill. The best strategy to avoid gravel migration risks here is the use of “Integral Cell Grids” anchored into the sub-grade. These grids act as miniature check-dams, holding small pockets of stone in place and preventing the “washout” effect during storms.

Scenario B: The Tree-Lined Driveway

Organic debris (leaves, twigs) is a secondary migration risk. As organic matter breaks down within the gravel, it turns to soil. This soil acts as a lubricant, reducing the friction between stones and allowing them to migrate more easily. A successful plan involves a “High-Crest” grading, which encourages debris to wash to the edges rather than settling into the stone matrix.

Planning, Cost Architecture, and Resource Dynamics

The economic evaluation of gravel stabilization must move beyond the “Initial Bag Price” to account for the total lifecycle cost, including replenishment labor and drainage clearing.

Range-Based Resource Allocation (Installed per Sq. Ft. in USD)

Component	Cost (Loose)	Cost (Stabilized)	ROI Factor
Sub-Base Prep	$2.00 – $4.00	$3.00 – $5.00	Foundation stability
Aggregate Material	$1.50 – $3.00	$1.50 – $3.00	Aesthetic quality
Stabilization (Grid/Resin)	$0.00	$2.50 – $7.00	Migration prevention
Labor & Compaction	$3.00 – $5.00	$5.00 – $9.00	Professional finish

Opportunity Cost: Choosing a loose-fill system without stabilization often results in a 15% – 20% material loss per year. Over a five-year horizon, the cost of stabilization typically pays for itself by eliminating the need for new stone and the labor to rake it back into place.

Tools, Strategies, and Support Systems

A high-performance stable gravel surface relies on several “invisible” support technologies:

1. Non-Woven Geotextiles: Essential for separation. Without this fabric, the gravel will migrate vertically into the soil, regardless of how well it is confined horizontally.

2. Vibratory Plate Compactors: Critical for angular stone. Compaction “sets” the jigsaw pieces together, creating a pre-stressed surface.

3. Heavy-Duty Steel Edging: Provides the lateral “push-back” necessary to keep the stone within its intended footprint.

4. Soil Anchors: Used to pin cellular grids to the ground, ensuring the skeleton doesn’t “float” during heavy rain.

5. Washed Aggregate Specification: Ensuring the stone is free of “fines” or dust that could turn into a lubricant when wet.

Risk Landscape: Failure Modes and Compounding Effects

The primary threat to aggregate stability is “Internal Friction Loss.” This occurs when a surface is overloaded or when the stone becomes contaminated with dirt.

• The “Floating Grid” Failure: Occurs when cellular grids are filled too high. If the stone covers the top of the plastic grid by more than a half-inch, the stone on top becomes unconfined and begins to migrate, eventually exposing the plastic edges to UV damage.

• Compounding Risk (Drainage Blockage): Migrated gravel often ends up in catch basins or French drains. This reduces the site’s ability to handle water, leading to surface flooding, which in turn causes even more gravel to migrate in a “positive feedback loop” of failure.

Governance, Maintenance, and Long-Term Adaptation

A stabilized gravel surface is a “low-maintenance” asset, but it is not “no-maintenance.” Stewardship requires a governance schedule to catch migration signals early.

• Bi-Annual Edge Audit: Inspecting the perimeter for “spillover.” If stone is consistently moving over the edging, it indicates a high-traffic shear point that may require a polymer binder “patch.”

• Leaf Vacuuming (Low Suction): Removing organic matter before it turns to soil. This maintains the high-friction environment between the stones.

• Redistribution Raking: Even with grids, a minor amount of surface stone may move. A monthly “grooming” ensures the cells remain covered and protected from UV light.

Measurement, Tracking, and Evaluation Metrics

To validate the success of a stabilization program, property managers should track:

1. The “Rake Frequency” Metric: How many times per month does a path require manual leveling? A successful stabilization program should reduce this to near zero.

2. Stone Loss Percentage: Tracking how many tons of stone must be ordered annually for “top-ups.”

3. Infiltration Rate: Ensuring that stabilization hasn’t clogged the surface; a healthy grid system should still swallow a five-gallon bucket of water in under 30 seconds.

Common Misconceptions and Oversimplifications

• Myth: “Pea gravel is fine if you pack it down.” Correction: Because pea gravel is rounded, it cannot be “packed.” It will always behave like a fluid. Angular stone is the only choice for stability.

• Myth: “Fabric prevents weeds, not migration.” Correction: While it helps with weeds, its primary engineering role is “fines migration prevention”—keeping the stone and soil separate.

• Myth: “Stabilizers make gravel waterproof.” Correction: High-quality polymer binders are porous. If a binder makes the path waterproof, it was either over-applied or the wrong product was used.

Synthesis: The Future of Stable Aggregate Surfaces

The transition toward mastering how to avoid gravel migration risks represents a shift toward more intelligent, “active” landscapes. We are moving away from the “disposable” paving mindsets of the past toward surfaces that are designed for decadal performance. By integrating the structural rigidity of cellular confinement with the natural permeability of crushed stone, we create infrastructure that respects the hydrological cycle while meeting the mechanical demands of modern transit. The goal is a surface that remains exactly where it was placed, serving as a permanent, breathable membrane between the built world and the earth beneath.
