Compare Premium Porous Surfacing Systems: A Definitive Editorial

The contemporary built environment is witnessing a radical departure from the “shield-and-shed” philosophy that dominated twentieth-century civil engineering. For decades, the standard response to precipitation was to repel it—creating vast, impervious expanses of asphalt and concrete designed to move water away from structures as rapidly as possible. Compare Premium Porous Surfacing Systems. While this solved immediate localized drainage concerns, it inadvertently birthed a systemic crisis of urban runoff, groundwater depletion, and the catastrophic overtaxing of municipal gray infrastructure. In this context, the emergence of high-performance infiltration surfaces represents not just a material upgrade, but a fundamental shift in how we perceive the interface between human habitation and the natural watershed.

Porous surfacing, at its most sophisticated level, acts as a functional, breathable skin for the earth. Unlike traditional paving, which treats the ground as a static stage, these systems are dynamic. They are designed to manage complex hydrological loads while maintaining the structural integrity required for heavy vehicular and pedestrian traffic. However, as the market matures, the terminology has become increasingly clouded by marketing hyperbole and technical overlap. Distinguishing between a “porous” material and a “permeable” system is the first step toward true topical mastery, as the difference often determines whether a project succeeds as a long-term asset or fails as a subterranean liability.

This editorial analysis seeks to move beyond the surface-level comparisons often found in trade literature. To truly understand the current landscape, one must look beneath the top layer at the mineralogical layering, the geotechnical fabrics, and the hydraulic reservoirs that define modern “integrated infiltration.” As regulatory bodies across the United States tighten mandates on on-site stormwater mitigation, the ability to discern the nuances of these systems has moved from a specialized niche to a foundational requirement for architects, estate managers, and urban planners.

Understanding “compare premium porous surfacing systems”

To effectively compare premium porous surfacing systems, one must first dismantle the prevailing notion that porosity is a monolithic trait. In professional practice, porosity is an “assembly characteristic.” A surfacing material is only as effective as the “void ratio” of the subterranean layers supporting it. A multi-perspective explanation reveals that a system’s quality is defined by three primary vectors: its “Structural Load Capacity” (how much weight it can bear), its “Hydraulic Conductivity” (how fast it swallows water), and its “Systemic Resilience” (how long it remains unclogged).

A frequent oversimplification in this field is the belief that all “holes” are created equal. In reality, the efficacy of integrated surfacing is determined by the “Drawdown Rate”—the speed at which the underlying subgrade can empty the reservoir after a storm. When you compare premium porous surfacing systems, you are actually comparing how each material handles “Surface Blinding,” the process where fine silts and organic matter clog the pores. For example, a system with large, open joints may have a lower initial infiltration rate than a porous resin-bound aggregate, but it may prove more resilient over a decade because it is easier to maintain with mechanical vacuuming.

The risk of misunderstanding is particularly high when discussing “Porous” vs. “Permeable” vs. “Pervious.” While often used interchangeably in casual conversation, in a technical context, “Porous” typically refers to materials where water passes through the material (like pervious concrete), whereas “Permeable” often refers to systems where water passes around the units (like interlocking pavers with stone-filled joints). A sophisticated comparison requires evaluating the “Clogging Threshold” of each; a material that looks sleek and seamless often requires a much higher frequency of specialized cleaning than a modular, jointed system.

The Systemic Evolution of Infiltration Architecture

The history of paving in America can be viewed as a pendulum swing from the “Natural Porosity” of the 19th-century cobblestone to the “Total Sealing” of the mid-20th century interstate era, and now back toward “Managed Infiltration.” During the post-WWII boom, the priority was “Structural Deflection.” Engineers viewed moisture as the primary enemy of road longevity, leading to the creation of the modern “impervious desert” found in most American suburbs.

The current “Integrated Era” began in earnest in the early 2000s, spurred by the EPA’s Clean Water Act mandates and the rising costs of traditional “Gray Infrastructure” (pipes and treatment plants). We are now entering a stage characterized by “Smart Infiltration,” where the surfacing itself is occasionally embedded with sensors to monitor moisture levels and siltation. This trajectory reflects a move away from the road as a passive slab and toward the road as a functional utility, capable of sequestering carbon, reducing urban temperatures via albedo management, and recharging aquifers simultaneously.

Conceptual Frameworks and Hydrological Mental Models

Professionals utilize several mental models to diagnose and design high-performance porous landscapes:

• The “Vertical Sponge” Model: This model treats the entire road assembly—from the surface down to the native soil—as a single, three-dimensional filter. The goal is to maximize the “Residence Time” water spends within the mineral matrix to ensure pollutants are broken down by aerobic bacteria.

• The “Peak-Flow Shaving” Framework: This prioritizes temporal management. Porous surfacing is viewed as a “buffering” system that delays the release of water into municipal systems, effectively “shaving” the peak off a storm hydrograph to prevent downstream flooding.

• The “Void-Ratio Efficiency” Model: This focuses on the physics of the stone base. It assumes that the strength of the road is provided by the “Point-to-Point” contact of large angular aggregates, while the “Storage” is provided by the 40% empty space (voids) between them.

Key Categories of Premium Porous Materials

When we compare premium porous surfacing systems, we must categorize them by their binder type and structural behavior.

Comparison of High-Performance Surfacing Architectures

System Type	Structural Load	Void Space Efficiency	Siltation Risk	Maintenance Method

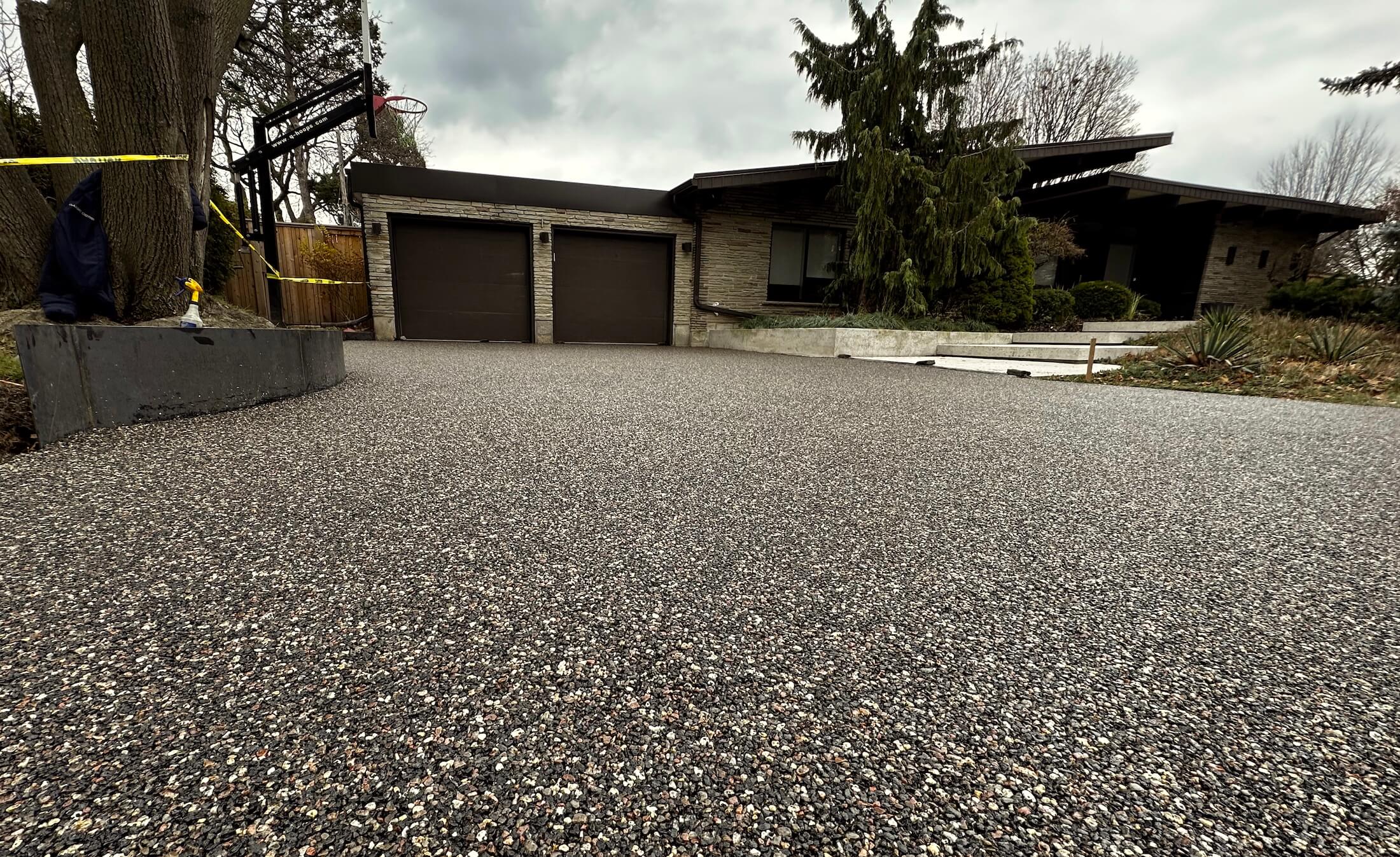

Resin-Bound Aggregate	Moderate	High (20-30%)	Moderate	Power Wash / Vac
Pervious Concrete	High	Moderate (15-25%)	High	Regenerative Vacuum
Porous Asphalt	High	Low (15-20%)	Very High	Specialized Sweeping

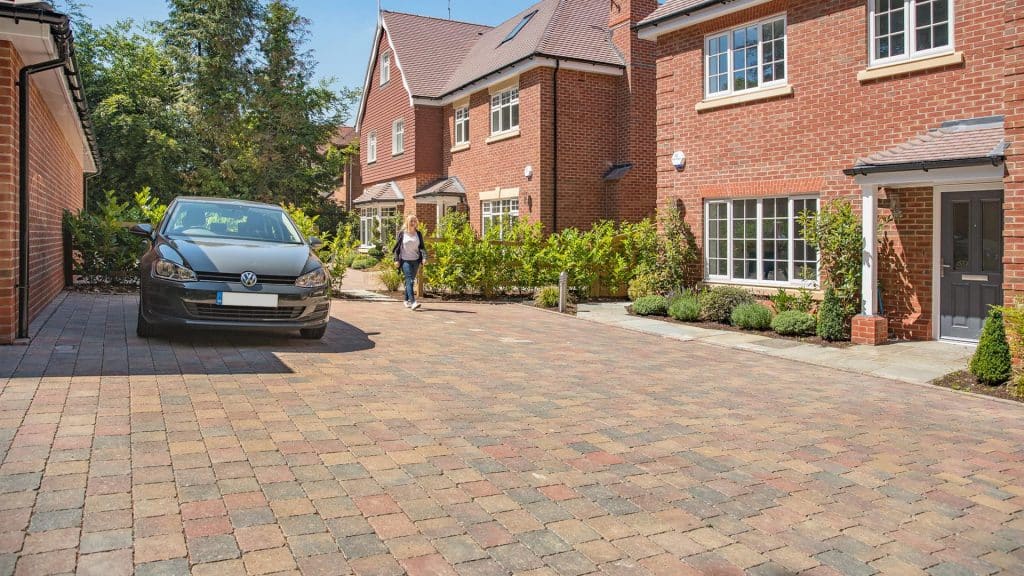

Permeable Pavers (PICP)	Exceptional	Variable (Joint-based)	Low	Joint Refreshing
Plastic Geocells (Grass/Gravel)	Low to Moderate	Exceptional (90%+)	Low	Raking / Mowing
Porous Rubber (Recycled)	Low (Pedestrian)	Exceptional	Low	Leaf Blowing

Realistic Decision Logic

The decision to implement one over the other usually hinges on “Surface Shear.” For areas where vehicles are making tight, frequent turns (like a delivery bay), modular systems (PICP) are superior because the interlock prevents the “tearing” that can happen with resin-bound or asphalt surfaces. In contrast, for a luxury residential walkway where aesthetics are paramount and loads are light, a resin-bound system provides a seamless, “Zen-like” finish that is cooler to the touch in summer.

Detailed Real-World Scenarios and Decision Logic Compare Premium Porous Surfacing Systems

Scenario A: The Urban “Heat Island” Retrofit

A city-center plaza previously paved in dark asphalt.

• The Challenge: Extreme runoff and surface temperatures exceeding 140°F.

• The Plan: Implementation of high-albedo (light-colored) pervious concrete.

• Decision Point: Choosing a light-colored aggregate that reflects solar radiation while allowing the ground to “breathe,” reducing the localized air temperature by up to 10°F.

Scenario B: The Sloped Estate Driveway

A driveway with an 8% grade in a region with heavy seasonal rain.

• The Challenge: Water accelerates across the surface, bypassing pores and eroding the landscape.

• The Plan: A “Terraced Base” design where subterranean check-dams of non-porous soil or concrete are placed every 10 feet within the stone reservoir to slow the vertical and lateral movement of water.

• Constraint: Resin-bound surfacing may be too smooth; a modular paver with high-friction joints is selected for vehicular safety.

Planning, Cost Architecture, and Resource Dynamics

The economic profile of porous surfacing is characterized by higher upfront “Material Complexity” but significantly lower “Downstream Liability.”

Range-Based Resource Allocation (Installed per Sq. Ft.)

Component	Traditional Asphalt	Resin-Bound Porous	Permeable Paver (PICP)
Excavation Depth	8″ – 12″	12″ – 18″	18″ – 30″
Base Stone (Washed)	$2 – $4	$4 – $7	$6 – $10
Surface Layer	$4 – $6	$12 – $18	$12 – $25
Drainage Hardware	$5+ (Pipes/Curbs)	$0	$0
Total Project	$11 – $22	$16 – $25	$18 – $35

The “Invisible Dividend”: By eliminating the need for detention ponds, curbing, and storm-sewer piping, a project that appears 50% more expensive on the surface often results in a 10% – 15% total site savings, while increasing developable land area.

Tools, Strategies, and Support Systems

A resilient integrated surfacing system relies on a specialized toolkit to ensure long-term functionality:

1. Regenerative Air Vacuums: Unlike standard sweepers, these use high-velocity air to “pull” silt out of the pores without damaging the structural matrix.

2. Non-Woven Geotextiles: These act as the “separation layer,” preventing the fine silts of the native subgrade from migrating upward into the clean stone reservoir.

3. Washed No. 57 Stone: The industry standard for the “Reservoir Layer,” providing the critical balance of load-bearing strength and void space.

4. Edge Restraints (Mechanical): Essential for permeable systems; without rigid concrete or steel perimeters, the “loose” aggregate base will cause the surface to migrate.

5. Observation Wells: A simple PVC pipe extending to the bottom of the base, allowing managers to monitor “Drawdown” rates after a storm.

6. Bio-Remediation Additives: Sprays that introduce “oil-eating” bacteria into the stone reservoir to digest hydrocarbon leaks from vehicles.

Risk Landscape: Failure Modes and Compounding Effects

The taxonomy of failure in porous surfacing is almost always linked to “Systemic Blinding.”

• The Siltation Cascade: Fine organic matter (leaves, grass clippings) breaks down in the pores. If not removed, it creates a waterproof “mat” that turns a porous surface into an impervious one.

• Structural Rutting: If the stone base is not “angular” enough, the stones will roll over each other like ball bearings, causing the surface to deform under wheel loads.

• The “Bathtub” Effect: In low-perk (clay) soils, if an underdrain is not installed, the water stays in the stone base, eventually souring and weakening the native soil subgrade.

Governance, Maintenance, and Long-Term Adaptation

A porous surfacing asset is a “living” civil utility. Treating it like traditional asphalt—with total neglect—is a guarantee of failure within five to seven years.

• Annual Infiltration Audits: Pouring a specific volume of water on the surface to time the “disappearance” rate.

• Joint Refreshing: For modular systems, the “jointing stone” is the primary filter. It must be replaced if it becomes saturated with oil or silt.

• Winter Adaptation: Use “poly-edge” plow blades to prevent catching the edges of pavers or resin. Avoid using sand for traction at all costs, as it immediately “kills” the permeability.

Measurement, Tracking, and Evaluation Metrics

Success is measured through three primary signals:

1. Hydraulic Conductivity (k): Measured in inches per hour. A healthy system should swallow at least 50 inches per hour when new.

2. Void Ratio Stability: Tracking whether the “Reservoir Layer” is maintaining its 40% capacity or if it is being slowly filled with migrating subsoil.

3. TSS Removal Rate: Measuring the “Total Suspended Solids” that are filtered out by the system before the water reaches the water table.

Common Misconceptions and Oversimplifications

• Myth: “Porous surfacing is too weak for trucks.” Correction: When built with deep bases of No. 2 ballast stone, these systems are used in heavy-duty shipping ports.

• Myth: “The water just stays there and smells.” Correction: A properly designed system drains into the soil or an underdrain within 24–48 hours, preventing anaerobic conditions.

• Myth: “Weeds grow through the pavement.” Correction: Weeds grow down into the joints from wind-blown seeds; they do not grow up from the soil. Regular maintenance prevents this.

• Myth: “It freezes and breaks in the winter.” Correction: Because the system is “open,” water has room to expand as it freezes without putting pressure on the units, often resulting in less frost-heave than solid concrete.

Ethical, Practical, and Contextual Considerations

The implementation of integrated surfacing is a matter of “Site-Specific Ethics.” By managing runoff on-site, a property owner reduces the burden on municipal infrastructure, which is often a significant cost for lower-income taxpayers. However, there is a practical limit: porous surfacing should never be used in “Hot Spots” where high concentrations of hazardous chemicals are handled (e.g., gas stations), as the system would provide a direct conduit for those toxins into the groundwater.

Synthesis: The Future of the Porous Estate

The trajectory of the American built environment is moving toward a state of “Functional Transparency,” where our roads and plazas no longer hide the hydrological cycle but facilitate it. As we continue to compare premium porous surfacing systems, we are moving closer to a civil engineering baseline that respects the native sponge-like behavior of the earth.

The future of the field lies in the integration of “Carbon-Negative” concrete and “Bio-Remediating” aggregates that can actively digest hydrocarbons within the stone matrix. For the professional urban planner and the private developer alike, the goal is to shift the perception of surfacing from a “barrier” to a “bridge”—a durable, load-bearing surface that remains an active, breathable participant in the local ecosystem.
