Compare Permeable Paving Systems: A Definitive Technical Guide

The management of surface water has historically relied on the principle of rapid redirection—moving precipitation away from structures as quickly as possible through impervious surfaces and subterranean pipe networks. However, as urban density increases and climatic patterns shift toward more frequent, high-intensity rainfall events, this traditional “gray infrastructure” model is reaching its mechanical and economic limits. TCompare Permeable Paving Systems. he result is a systemic move toward Source Control, where the ground itself is engineered to mimic natural hydrological cycles.

Navigating the various technical pathways for infiltration requires an understanding of the site as a living system rather than a static platform. Choosing the right surface is not merely an aesthetic decision but a civil engineering commitment that dictates how a property interacts with the local water table, municipal sewers, and the surrounding ecosystem. This shift represents a move from passive surfaces to active, functional landscapes that process pollutants and mitigate the urban heat island effect.

This analysis explores the multifaceted world of infiltration-ready surfaces, examining the engineering requirements, material trade-offs, and long-term performance dynamics that define modern water management. By shifting the focus from simple aesthetics to structural and hydrological integrity, we can better evaluate the true utility of various infiltration strategies in diverse environmental contexts.

Understanding “compare permeable paving systems”

To effectively compare permeable paving systems, one must first reject the notion of a universal “gold standard.” In civil engineering and high-end landscape architecture, performance is a relative metric defined by the convergence of load-bearing requirements, native soil percolation rates, and local climate stressors. A surface that excels in a pedestrian-only courtyard in a temperate zone would be a catastrophic failure if applied to a heavy-vehicle driveway in a region prone to deep-freeze cycles or heavy siltation.

Common misunderstandings often stem from a failure to distinguish between porous materials and permeable systems. Porous materials, such as pervious concrete, allow water to pass through the material’s internal cellular structure. Permeable systems, such as interlocking concrete pavers, typically rely on engineered gaps filled with specialized aggregates. The oversimplification of these differences often leads to improper maintenance expectations; for example, assuming that all systems are equally resistant to “clogging” from organic debris or sand.

Furthermore, the “best” option must account for the sub-base—the hidden layers of crushed stone that act as a temporary reservoir. If the sub-base is undersized or the native soil below it is non-expansive clay with zero infiltration, the most expensive surface in the world will essentially function as a pond. Therefore, to truly compare permeable paving systems requires a holistic view of the “entire assembly” rather than just the visible top layer.

The Evolution of Hydrological Surface Design

The transition to permeable surfaces is a return to form rather than a radical invention. Pre-industrial pathways were inherently pervious, composed of loose aggregates or natural earth. The 20th-century obsession with asphalt and poured concrete was driven by the need for low-cost, high-speed transit and a “clean” aesthetic that prioritized the automobile.

However, the unintended consequences of total sealing—urban heat islands, downstream flooding, and the “first flush” of pollutants into waterways—have forced a re-evaluation. Modern design integrates 19th-century masonry techniques with 21st-century material science, using geotextiles, polymer stabilizers, and high-strength interlocking geometries to create surfaces that are as durable as traditional pavement while remaining hydrologically “invisible.”

Conceptual Frameworks and Mental Models

To effectively plan a project, designers often use specific mental models to categorize the intent of the surface:

1. The Sponge Model: Here, the surface and sub-base act as a storage vessel. The goal is to capture 100% of a specific “design storm” (e.g., a 10-year event) and let it slowly migrate into the ground.

2. The Filter Model: In areas where the groundwater is shallow or the soil is contaminated, the system acts primarily as a bio-filter, cleaning the water through mechanical straining and microbial action before it is redirected to a secondary drain.

3. The Peak Shaver Model: In ultra-dense urban environments with clay soils, the goal is not total infiltration but “detention”—slowing the water down to prevent the municipal sewer from overflowing during the peak of a storm.

Primary Material Categories and Trade-offs

When you compare permeable paving systems, the decision usually falls into one of several distinct material families, each with its own set of mechanical limits.

Comparison of Performance Dynamics

1. Permeable Interlocking Concrete Pavers (PICP)

These consist of solid concrete units with small, engineered joints. The joints are filled with clear, crushed stone (No. 8 or No. 9 aggregate). This is arguably the most resilient system for driveways and commercial lots because the units themselves are incredibly strong, and the “permeability” is concentrated in the joints, which are easier to clean than internal pores.

2. Pervious Concrete

Unlike standard concrete, this mix omits “fines” (sand), creating a honeycomb structure. It is highly effective for large flatwork but requires specialized installers. If the water-to-cement ratio is off by even a small percentage during pouring, the surface will either be too weak or will “seal up” and lose its function.

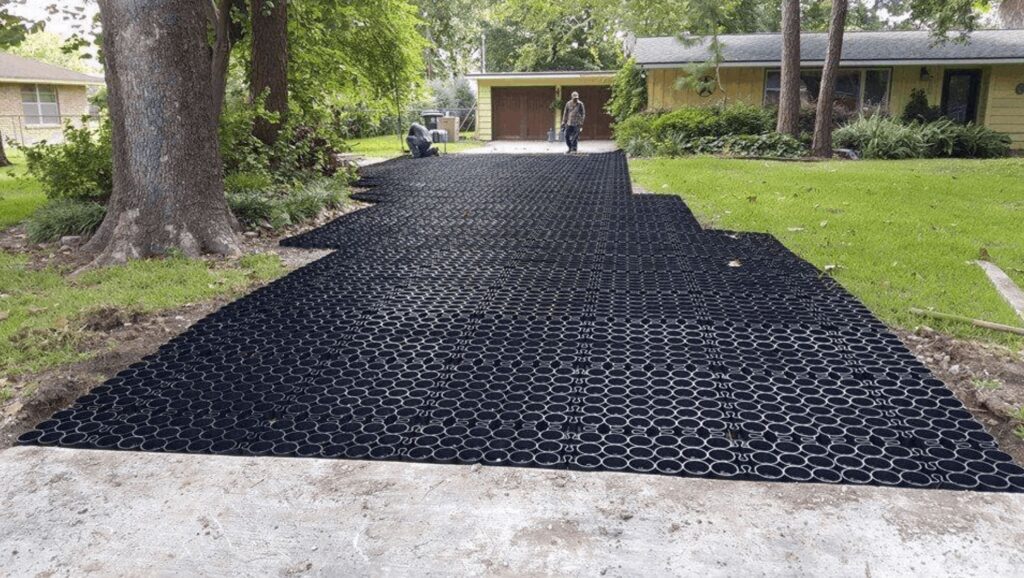

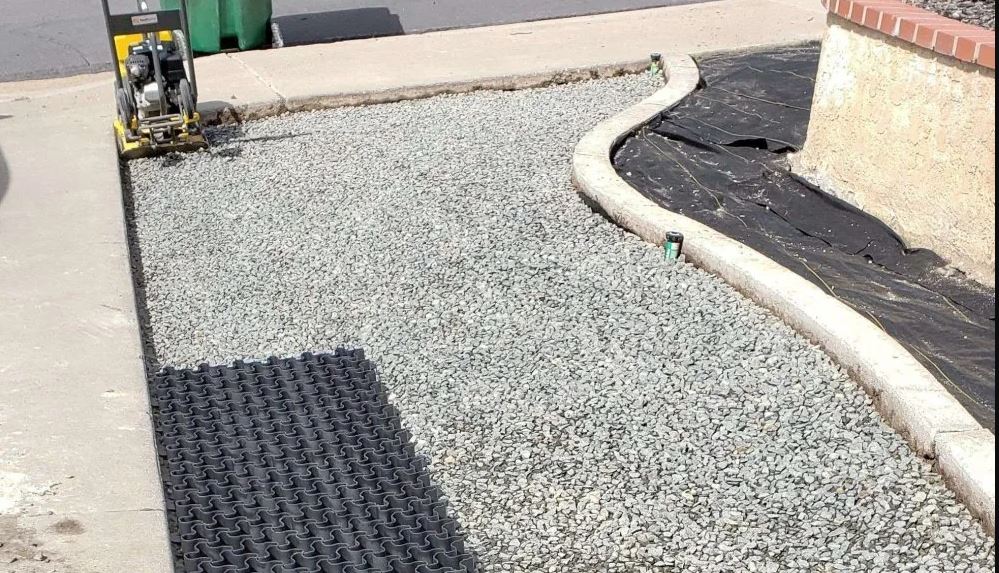

3. Cellular Confinement (Grid Systems)

Plastic or concrete grids can be filled with grass or gravel. While aesthetically pleasing, grass-filled grids often struggle in high-traffic areas because the compaction of the soil eventually kills the root systems, leading to a muddy mess rather than a lush lawn.

Real-World Scenarios and Decision Logic Compare Permeable Paving Systems

Scenario A: The High-Slope Residential Driveway

In this context, water velocity is the primary enemy. If using loose aggregates, the water will wash the stones downhill. To compare permeable paving systems for slopes, PICP excels when paired with a “benched” sub-base—creating subterranean dams in the stone layers to prevent all the water from rushing to the bottom of the hill and blowing out the retaining wall.

Scenario B: The Coastal Property with High Water Tables

When the groundwater is only 12 inches below the surface, “infiltration” is impossible. The system must be designed as a “shallow detention” bed, using a liner to protect the foundation and a high-level overflow pipe to redirect water once the storage layer is full.

Risk Landscape and Failure Modes

The primary threat to all permeable systems is clogging. This occurs when fine sediments (silt, sand, organic mulch) fill the voids. In “porous” materials, this is often permanent. In “interlocking” systems, it can be mitigated by removing and replacing the top inch of joint stone.

Another compounding risk is chemical contamination. Because these systems are designed to put water back into the ground, a major oil or chemical spill on a permeable surface is an environmental disaster. The “sponge” that holds the water also holds the poison, making remediation much more expensive than on a sealed surface where the spill can be contained with booms.

Governance, Maintenance, and Long-Term Adaptation

A permeable surface is an “active” asset that requires a maintenance schedule:

• Monthly: Visual inspection for debris accumulation (leaves, pine needles).

• Seasonally: High-power leaf blowing to prevent organic matter from breaking down into soil within the joints.

• Annually: Infiltration test (pouring five gallons of water in a small area to see how fast it disappears).

• Bi-Annually: Professional regenerative air vacuuming for commercial sites to pull fines out of the deep pores.

Common Misconceptions and Oversimplifications

• Myth: Permeable paving isn’t for cold climates. Correction: It actually performs better in freeze-thaw cycles because the water drains away before it can freeze and “heave” the pavement.

• Myth: You never have to mow a grass-grid. Correction: If it’s grass, it still needs water, sun, and mowing. It is a lawn with a skeleton, not a maintenance-free surface.

• Myth: All gravel is permeable. Correction: Standard “crusher run” gravel contains “fines” (dust) that pack together and become as hard as concrete. Only “clean” or “open-graded” stone is permeable.

Synthesis: The Future of Resilient Surfaces

The effort to compare permeable paving systems is a transition from simple construction to environmental stewardship. It requires a departure from the “install and forget” mentality of the 20th century toward a more nuanced understanding of site hydrology and material science. While the complexities of sub-base engineering and the discipline of regular maintenance may seem daunting, the benefits—reduced flood risk, cooler urban environments, and a healthier water table—create a landscape that is resilient for decades.
