Best Volcanic Rock Permeable Surfaces: An Engineering Pillar

The integration of extrusive igneous rocks into the built environment represents a sophisticated convergence of geological durability and modern hydrological engineering. For much of the twentieth century, the American landscape was dominated by monolithic, petroleum-based surfaces designed to shed water with maximum velocity. Best Volcanic Rock Permeable Surfaces. As the environmental and structural liabilities of these impervious systems—ranging from urban heat island intensification to the catastrophic collapse of municipal storm sewers—have become undeniable, the focus of civil engineering has shifted toward infiltration-ready assemblies. Volcanic rocks, characterized by their unique vesicular structure and high mineral stability, have emerged as the premier material for high-performance permeable infrastructure.

Volcanic aggregates such as scoria, pumice, and basalt are not merely aesthetic alternatives to traditional limestone or granite. They possess inherent physical properties—specifically high porosity, high surface area, and exceptional frictional resistance—that make them uniquely suited for moisture governance. When utilized in a permeable paving system, these materials do more than allow water to pass through; they function as active biological and mechanical filters. The vesicular nature of volcanic rock provides a massive internal surface area for the colonization of nitrogen-fixing bacteria and other microbes that break down hydrocarbons from vehicle runoff before they reach the water table.

Navigating the transition toward volcanic-based surfaces requires a departure from standard “pave and forget” mindsets. It demands an editorial-level attention to the site’s geomorphology and the specific chemical interactions between the aggregate and local groundwater. Implementing these systems is an exercise in value engineering, where the initial investment in premium volcanic material is balanced against the significant reduction in long-term maintenance and the elimination of localized flooding risks. This analysis serves as a flagship reference for the systemic application of volcanic aggregates in modern American hardscaping.

Understanding “best volcanic rock permeable surfaces”

Defining the best volcanic rock permeable surfaces requires an analytical perspective that extends beyond the top layer of stone. In the disciplines of landscape architecture and civil engineering, a “surface” is actually a three-dimensional assembly composed of the wearing course, the bedding layer, and the reservoir sub-base. The efficacy of volcanic rock in this context is determined by its “vesicularity”—the presence of small cavities or bubbles formed by gas during the cooling of magma. High-tier volcanic surfaces leverage this porosity to provide superior water storage and evaporation rates compared to denser metamorphic or sedimentary rocks.

Common misunderstandings often arise from the assumption that all volcanic rock is functionally identical. While basalt is an exceptionally durable, dense volcanic rock ideal for heavy load-bearing pavers, scoria (lava rock) is much lighter and more porous, making it better suited for decorative infiltration zones or lightweight green roof assemblies. Identifying the “best” application is a matter of matching the specific gravity and crush strength of the rock to the intended traffic load. A failure to distinguish between these materials often leads to “crushing” or “powdering” if a low-density scoria is used in a vehicular driveway.

Oversimplification in this sector frequently ignores the role of “Angular Interlock.” The best volcanic rock permeable surfaces utilize crushed, angular aggregates rather than rounded river stones. The jagged edges of crushed volcanic rock create a mechanical lock that prevents the surface from “shifting” or “rutting” under the lateral pressure of a turning vehicle. When properly engineered, these systems provide a stable, walkable, and drivable surface that maintains a void space of 30% to 40%, ensuring that even the most intense “century storm” events are processed at the source.

The Systemic Evolution of Igneous Infrastructure

Historically, volcanic rocks were primarily utilized in construction for their insulating properties or as a lightweight additive in Roman concrete. The transition to horizontal, permeable paving is a relatively modern phenomenon, driven by the shift toward “Low Impact Development” (LID) in the United States and Europe. In the mid-twentieth century, volcanic rock was often relegated to the “mulch” category—purely decorative and prone to migration.

We are now in the era of “Engineered Infiltration.” The current state of the art involves the use of volcanic aggregates as the primary structural component of the sub-base. As municipalities implement stricter “impervious surface” taxes and regulations, the economic value of volcanic rock has increased. We have moved from viewing lava rock as a boutique aesthetic choice to recognizing it as a critical utility for groundwater recharge. Modern systems now integrate volcanic stones into “geocellular” confinement grids, creating a hybrid of plastic stability and mineral performance.

Conceptual Frameworks and Hydrological Mental Models

When evaluating a site for volcanic paving, engineers employ specific mental models to predict performance:

• The “Biological Filter” Model: This views the paving system as a living organism. The porous surface of the volcanic rock acts as a “bio-film” substrate. As water percolates through, it is cleaned of pollutants by microbes living in the rock’s vesicles.

• The “Evaporative Cooling” Framework: Unlike dark asphalt, which absorbs and holds heat, the vesicular structure of volcanic rock allows for “evaporative cooling.” Moisture trapped within the rock pores evaporates during the heat of the day, actively lowering the ambient temperature of the property.

• The “Static Reservoir” Model: This focuses on volumetric storage. It treats the sub-grade as a tank. The goal is to calculate the specific “void ratio” of the volcanic aggregate to ensure the system can hold a specific number of gallons of water per square foot before reaching saturation.

Material Categories and Mineralogical Trade-offs

Identifying the optimal material requires a cold, analytical look at mineral performance versus mechanical stress.

Comparison of Volcanic Aggregate Dynamics

Material Type	Density	Porosity	Crush Strength	Primary Use Case
Crushed Basalt	High	Low	Very High	Heavy-duty Driveways
Scoria (Lava Rock)	Low	Very High	Moderate	Walkways / Rain Gardens
Pumice	Very Low	Exceptional	Low	Filtration / Green Roofs
Vesicular Rhyolite	Moderate	Moderate	High	Multi-purpose Patios

Technical Decision Logic

The most frequent decision point involves the trade-off between Infiltration Rate and Structural Stability. While pumice offers the highest infiltration, it lacks the compressive strength to support a vehicle. Consequently, the “best” vehicular systems often use a “graded” approach: a base layer of high-strength basalt for stability, topped with a bedding layer of scoria for its filtration and water-retention properties.

Detailed Real-World Scenarios and Site Dynamics Best Volcanic Rock Permeable Surfaces

Scenario A: The Urban Heat Island (Los Angeles/Phoenix)

In high-heat urban environments, the goal is to reduce the “Albedo” effect. Traditional paving turns the driveway into a thermal battery. A volcanic surface, specifically light-colored rhyolite or gray basalt, reflects more solar radiation and allows for moisture-driven cooling. The constraint here is “Dust Accumulation”; in arid climates, the rock pores can fill with windblown silt, necessitating a quarterly “deep-wash” to maintain permeability.

Scenario B: The Freeze-Thaw Basin (Northeast/Midwest)

In regions with aggressive winters, standard concrete cracks due to “ice jacking.” Volcanic rock permeable surfaces excel here because the water drains vertically before it has a chance to freeze on the surface. Furthermore, the air pockets within the volcanic rock act as a thermal buffer, reducing the depth of the frost line beneath the driveway.

Planning, Cost, and Resource Dynamics

The economic profile of volcanic paving is characterized by a higher initial capital outlay balanced against a significant reduction in auxiliary infrastructure costs (such as pipes and catch basins).

Range-Based Resource Allocation (Installed per Sq. Ft. in USD)

Component	Cost Range	Variability Factors
Excavation & Prep	$4.00 – $8.00	Soil type / Distance to disposal
Volcanic Aggregate	$6.00 – $15.00	Shipping distance from quarry
Geotextile Layers	$1.50 – $3.00	Grade of separation fabric
Labor (Specialized)	$10.00 – $20.00	Complexity of the “cell” system

Opportunity cost is a critical factor here. By installing a volcanic rock system, a developer can often reclaim land that would otherwise be dedicated to a required “detention pond,” effectively increasing the usable (and taxable) square footage of the property.

Tools, Strategies, and Support Systems

A high-performance volcanic surface relies on a suite of specialized tools and strategic interventions:

1. Non-Woven Geotextiles: Essential for separating the volcanic aggregate from the native sub-soil to prevent “sinking.”

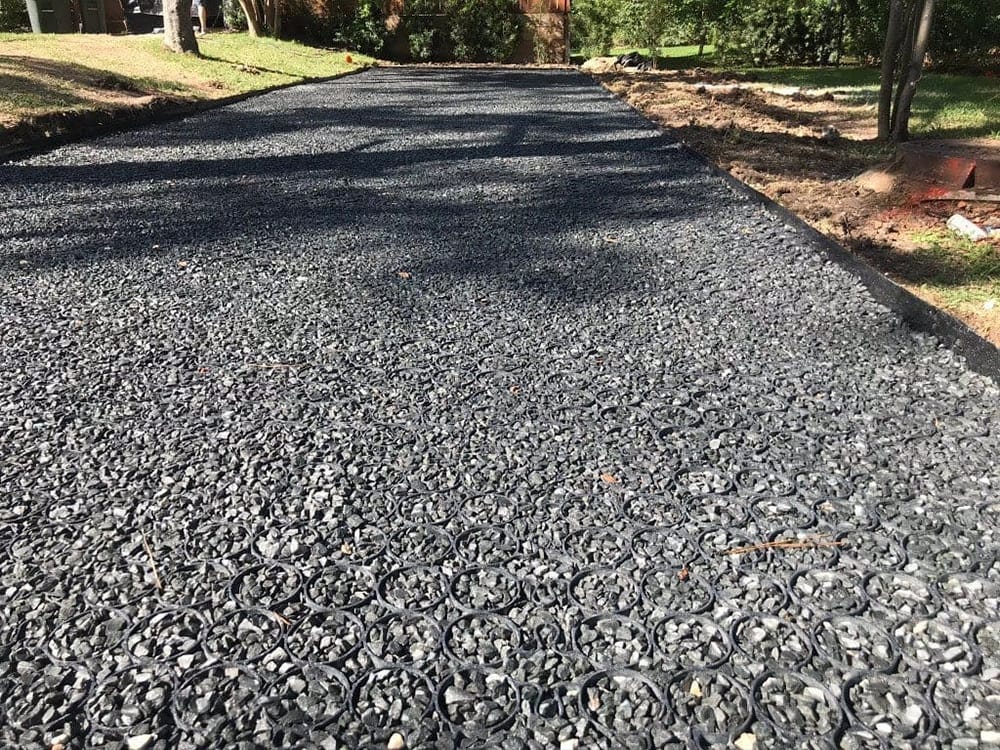

2. Plastic Cellular Confinement Grids: These provide the “skeleton” that allows loose volcanic rock to support the weight of a truck without shifting.

3. Observation Wells: A vertical pipe installed to the bottom of the aggregate reservoir, allowing the property manager to monitor the “drawdown” time after a storm.

4. Vibratory Plate Compactors: Used with rubber mats to “set” the volcanic stone without shattering the delicate vesicular structure.

5. Clean-Graded Specification: Ensuring the stone is “washed” before installation is vital; any dust or “fines” included in the delivery will immediately seal the system’s pores.

Risk Landscape and Failure Modes

The taxonomy of failure in volcanic rock systems is usually rooted in “Siltation.”

• Surface Clogging: This occurs when organic matter (leaves, mulch, grass clippings) is allowed to decompose on top of the rock. As the organic matter turns to soil, it fills the rock’s vesicles.

• Sub-grade Migration: If a geotextile is omitted, the native soil will eventually “pump” up into the volcanic stone, turning a permeable reservoir into a mud-filled pit.

• Aggregrate Crushing: Using a low-strength scoria in a high-turn area (like a turnaround or cul-de-sac) will eventually grind the rock into a fine powder, eliminating all permeability.

Governance, Maintenance, and Long-Term Adaptation

A volcanic surface is an “active” asset that requires a governance schedule rather than a “set and forget” mentality.

• Quarterly Blow-out: Using a high-velocity leaf blower to remove surface debris before it can settle into the rock pores.

• Annual Infiltration Audit: Pouring 5 gallons of water on a 1-sq-ft area; it should disappear within 20 seconds. If it takes longer than 60 seconds, a “regenerative air vacuum” is required.

• Five-Year Aggregate Refresh: Depending on traffic, the top inch of decorative volcanic stone may need to be raked out and replaced with fresh, washed aggregate to maintain the visual and functional quality.

Measurement, Tracking, and Evaluation

Performance is tracked through leading and lagging indicators:

1. Drawdown Rate (Leading): How many hours it takes for the observation well to be empty after a 1-inch rainfall event. 3–6 hours is optimal.

2. Thermal Delta (Lagging): Monitoring the temperature of the volcanic surface compared to a standard asphalt road on a 90°F day.

3. Biodiversity Signal: In some advanced projects, the water exiting the sub-base is tested for hydrocarbon levels to evaluate the “Bio-filter” efficacy.

Common Misconceptions and Oversimplifications

• Myth: It’s too sharp for bare feet. Correction: While raw volcanic rock is jagged, “tumbled” volcanic aggregate provides a smooth, sea-glass-like texture that is safe for pedestrians.

• Myth: The rock will “wash away” in a flood. Correction: Because the water moves through the rock rather than over it, there is no surface velocity to carry the stone away.

• Myth: It requires more maintenance than concrete. Correction: It requires different maintenance. You trade the expensive labor of crack-repair and sealcoating for the light labor of debris blowing.

Synthesis: The Future of Lithic Paving

The evolution of the best volcanic rock permeable surfaces represents a transition from “dominating” the landscape to “integrating” with it. As municipal infrastructure continues to age and climate volatility increases the frequency of “flash flood” events, the ability to manage water at the point of impact will move from an environmental luxury to a structural necessity. Volcanic aggregates, with their unique combination of mineral strength and biological utility, provide the most resilient path forward. The future of the American driveway is not a solid slab, but a sophisticated, breathing membrane of stone.
