Best Stormwater Detention Plans: A Definitive Engineering Guide

The management of stormwater has evolved from a matter of simple drainage to a sophisticated discipline of civil engineering and environmental stewardship. Historically, the primary objective of urban development was the rapid evacuation of water—moving runoff as quickly as possible away from the built environment and into municipal pipes. Best Stormwater Detention Plans. However, the systematic sealing of the earth through urbanization has rendered these “fast-evacuation” models unsustainable. As climate patterns shift toward higher-intensity precipitation and urban density increases, the burden of water management has shifted from municipal disposal to site-specific detention and mitigation.

At the core of this shift is the concept of detention: the temporary storage of stormwater runoff in a designated area with a controlled release rate. This process serves as a hydraulic shock absorber, protecting downstream ecosystems and infrastructure from the destructive energy of peak flow events. Without these systems, localized development would result in a cumulative surge of water that erodes natural stream banks and overwhelms aging municipal sewer systems.

To master the nuances of site development, one must move beyond the perfunctory compliance with local building codes and adopt a systemic view of water dynamics. A high-performance plan involves a complex interplay of topography, soil mechanics, and hydraulic regulation. This analysis serves as a flagship editorial examination of the diverse architectures available to the modern engineer and property owner, providing the analytical depth required to evaluate efficiency, longevity, and systemic integration. By exploring the physics of water retention and the economic realities of site-based infrastructure, we aim to establish a definitive framework for understanding how these invisible utilities protect both the built and natural worlds.

Understanding “best stormwater detention plans”

To effectively evaluate best stormwater detention plans, one must first distinguish between detention and retention—two terms frequently used interchangeably in general discourse but possessing distinct engineering functions. While retention systems (wet ponds) are designed to hold water permanently, detention systems (dry ponds or subterranean vaults) are designed to empty entirely between rain events.

Common misunderstandings in the planning phase often stem from the “Storage Fallacy.” Many property owners focus exclusively on the size of the basin or tank, assuming that bigger is inherently better. In reality, a plan’s success depends on the “Orifice Control”—the sizing of the outlet pipe that dictates the discharge speed. If the outlet is too large, the system fails to attenuate the peak flow, regardless of its storage capacity. Conversely, if it is too small, the system remains saturated for too long, increasing the risk of structural failure or local flooding during back-to-back storm events. Thus, a sophisticated plan is a study in temporal balance.

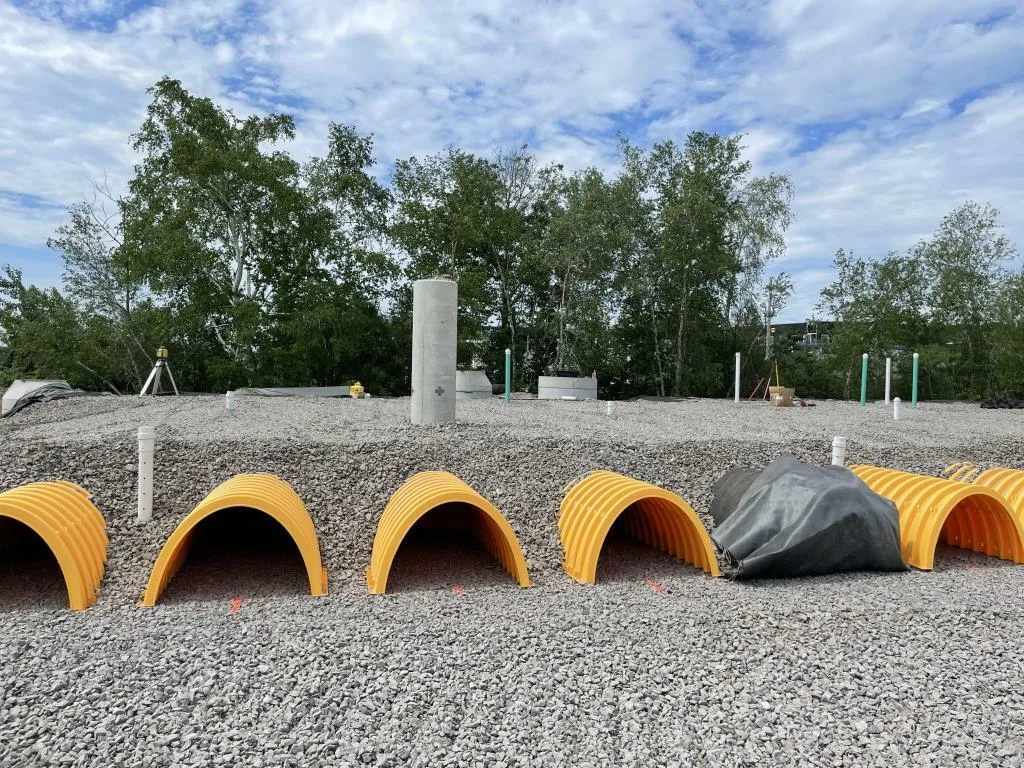

Oversimplification in the market also ignores the “Infiltration Potential” of the site. Many believe that a detention plan is strictly about holding water above ground. However, modern civil engineering increasingly prioritizes “Integrated Detention,” where water is stored in open-graded stone layers beneath parking lots or within modular plastic grids. These subterranean systems maximize land use while providing the necessary volumetric buffer. Therefore, the comparison of plans must include “Spatial Opportunity Costs”—how well the system allows for the continued use of the land surface for parking, recreation, or landscaping.

The Systemic Evolution of Runoff Regulation

The history of stormwater management reflects the changing relationship between civilization and the hydrological cycle. In the “Primitive Era,” runoff was a localized problem solved by natural depressions or simple swales. As cities grew in the 19th and 20th centuries, we entered the “Conduit Era,” where the prevailing philosophy was the “Big Pipe” approach. Engineers designed massive concrete sewers to transport water away as fast as possible. This approach, while effective for tidiness, proved disastrous for river health, leading to “flashy” streams that dried up in summer and exploded in winter.

The current “Low Impact Development” (LID) era marks a return to site-based responsibility. We are now in a stage where the landscape is designed to mimic the natural “sponge” effect. This evolution is driven by both regulatory mandates—such as the Clean Water Act—and a maturing understanding of the “Hydrograph.”

Conceptual Frameworks and Hydrological Mental Models

Engineers and hydrologists utilize several mental models to diagnose and design site-specific detention systems:

• The “Peak Flow Shaving” Model: This views the storm event as a bell curve. The detention system’s goal is to “shave off” the top of that curve, spreading the volume of the peak over several hours or days to prevent downstream flooding.

• The “Stacked Storage” Framework: This prioritizes verticality over horizontal footprint. It posits that on expensive urban lots, storage should be “stacked” in subterranean vaults or beneath multi-use surfaces to preserve the property’s primary economic value.

• The “Chain of Custody” Mental Model: This treats water as a liability that must be handed off safely. It tracks water from the moment it hits the roof, through the gutters, into the “pre-treatment” filters, and finally into the detention chamber. If any link in this chain fails, the entire plan collapses.

Key Categories of Detention Systems and Structural Trade-offs

The selection of a system depends on balancing the property’s topography against the intended land use and the local regulatory requirements.

Comparison of Stormwater Detention Architectures

System Type	Surface Footprint	Structural Complexity	Cost per Cubic Foot	Maintenance Profile
Dry Detention Basins	High	Low	Very Low	Mowing/Sediment Removal

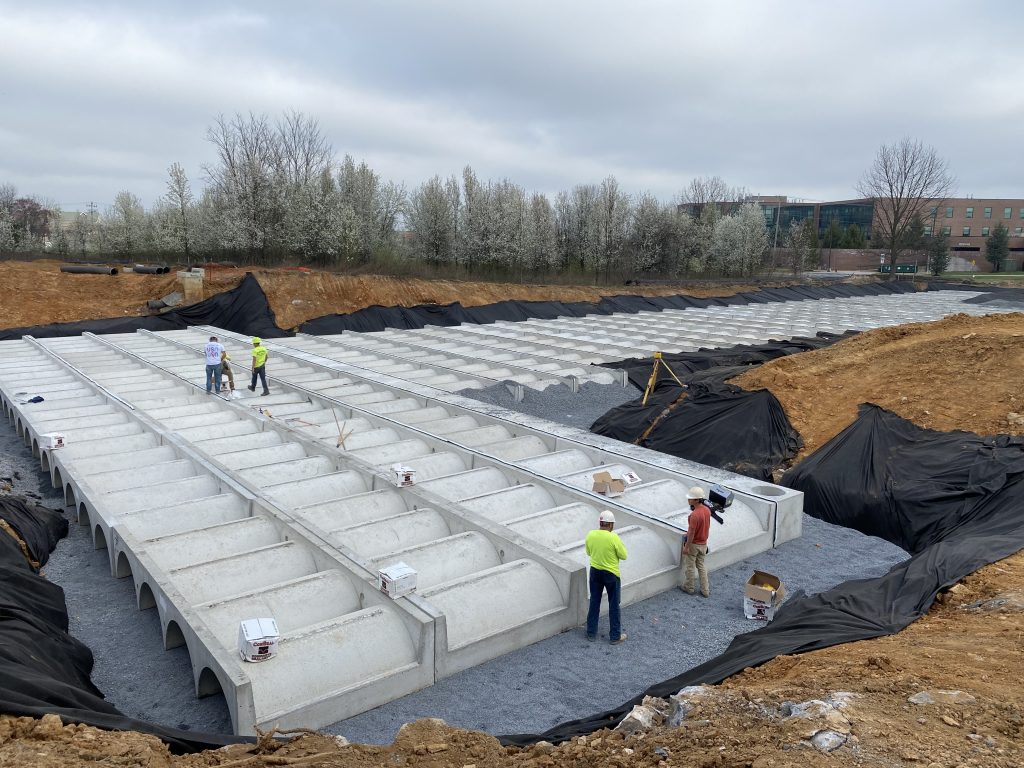

Underground Vaults	None	High	High	Specialized Vacuuming
Gravel-Filled Reservoirs	Moderate	Low	Moderate	Silt Filter Management
Geocellular Grids	None	Moderate	Moderate	Catch Basin Cleaning
Blue Roofs	None	Very High	High	Structural/Leak Audits

Realistic Decision Logic

The decision point for a plan usually hinges on “Land Scarcity.” In rural or suburban settings where land is abundant, a dry detention pond is the most cost-effective solution. However, in dense urban corridors where land values exceed $100 per square foot, the high capital cost of an underground concrete vault or geocellular system is easily justified by the ability to build a profitable structure or parking lot above it.

Detailed Real-World Scenarios and Decision Logic Best Stormwater Detention Plans

Scenario A: The Commercial Shopping Center

A 10-acre site with massive impervious roofs and parking.

• The Challenge: Runoff from the asphalt is hot and contaminated with oils.

• The Plan: A hybrid system. A bioswale for pre-treatment of the parking lot runoff, followed by a large geocellular detention unit beneath the main parking aisles.

• Outcome: The property meets strict runoff quality standards while preserving 100% of the lot for customer parking.

Scenario B: The Steep Residential Hillside

A development on a 15% grade.

• The Challenge: High-velocity water creates erosion risks.

• The Plan: A series of “Tiered Detention Swales.” Small, rock-lined basins that act as “steps” to slow the water’s descent.

• Failure Mode: If the basins aren’t anchored properly, the water will carve a channel under the rocks, leading to a landslide.

Planning, Cost Architecture, and Resource Dynamics

The economic evaluation of detention infrastructure must include the “Opportunity Cost” of the land utilized by the system.

Range-Based Resource Allocation (Installed per Cubic Foot of Storage)

Component	Dry Basin (Above Ground)	Modular Tank (Sub-Surface)	Concrete Vault
Excavation/Earthwork	$2.00 – $5.00	$4.00 – $8.00	$6.00 – $12.00
Materials/Structures	$0.50 – $1.50	$5.00 – $12.00	$15.00 – $30.00
Land Value Loss	High	Zero	Zero
Lifespan (Years)	50+	30 – 50	50 – 100
Total ROI Factor	Simplicity	Space Efficiency	Ultimate Longevity

Cost Variability: Underground systems are highly sensitive to “Backfill Specifications.” Using the wrong type of crushed stone can lead to the structural collapse of a modular tank, potentially costing hundreds of thousands in remediation.

Tools, Strategies, and Support Systems

A high-performance detention system relies on several “invisible” support technologies that prevent the system from becoming a liability:

1. Vortex Separators: Mechanical units that spin the water to remove heavy grit and trash before it enters the detention chamber.

2. Orifice Plates: Precision-cut steel plates installed in the outlet structure that mathematically define the “Release Curve.”

3. Non-Woven Geotextiles: Essential for underground systems; they prevent soil from migrating into the storage stone, which would cause “Internal Siltation.”

4. Observation Ports: Simple PVC pipes that allow maintenance crews to verify water levels and sediment depth without entering the structure.

5. Smart Flow Controls: Solar-powered valves that can “predict” a storm and empty the basin in advance to maximize capacity.

6. Energy Dissipaters: Large stones (rip-rap) placed at the outlet to prevent the concentrated discharge from scouring the downstream channel.

Risk Landscape: Failure Modes and Compounding Risks

The primary failure mode for any detention plan is “Sediment Blinding.”

• The Siltation Cascade: Fine particles of sand and clay settle on the bottom of the basin or vault. Over time, this reduces the available storage volume.

• The “Bathtub” Risk: If the orifice becomes clogged with trash, the system will not empty between storms. When the second storm hits, the basin is already full, causing an immediate, unregulated bypass into the street.

• Compounding Failure (Structural Heave): In areas with high groundwater, an empty underground tank acts like a boat hull. The buoyancy of the groundwater can “pop” the tank out of the ground, destroying the pavement above.

Governance, Maintenance, and Long-Term Adaptation

A detention system is a “living” civil asset that requires a governance cycle to ensure it meets its legal discharge permit.

• Quarterly Catch Basin Cleaning: Removing the heavy debris at the surface before it moves into the main system.

• Post-Storm Inspection: Verifying that the basin has emptied within 24 to 48 hours. If water remains, the orifice is likely obstructed.

• Decadal Dredging: For surface basins, the accumulated sediment must be physically removed every 10 to 15 years to restore original design capacity.

Measurement, Tracking, and Evaluation Metrics

To validate the success of a plan, property managers should document:

1. Drawdown Rate: The time it takes for a system to return to zero capacity after a one-inch rainfall.

2. Bypass Frequency: How many times per year the “Emergency Spillway” is used.

3. Sediment Accumulation Rate: Measuring the depth of silt annually to predict the next major clean-out.

4. Downstream Erosion Audit: Inspecting the discharge point for signs of soil scouring, which indicates the release rate is too high.

Common Misconceptions and Oversimplifications

• Myth: “The water just goes into the ground.” Correction: In most detention systems, the ground is too compacted to swallow all the water; the vast majority is released through a pipe into the city system.

• Myth: “Maintenance isn’t needed for underground tanks.” Correction: Underground systems are “out of sight, out of mind,” which makes them more dangerous. They require specialized vacuum trucks to clean.

• Myth: “Plants in a dry basin are just weeds.” Correction: Specifically chosen vegetation helps absorb nutrients and prevents the soil from compacting, maintaining the system’s efficiency.

• Myth: “A bigger pipe is always better for drainage.” Correction: A bigger pipe defeats the purpose of detention by failing to slow the water down.

Synthesis: The Future of Site-Based Water Management

As we move toward a future of increased climatic volatility, the ability to design and implement best stormwater detention plans with technical nuance becomes a mandatory skill for property stewardship. We are transitioning from a model of “disposal” to one of “attunement,” where the built environment mimics the natural hydrological rhythms of the earth.

The future of the field lies in “Active Hydro-Management”—systems that don’t just sit passively but use real-time sensors to communicate with the municipal grid. For the property owner, the goal remains the same: to create a resilient, invisible infrastructure that respects the watershed while protecting the structural and fiscal integrity of the site. By choosing a plan based on soil physics and hydraulic balance rather than just the lowest initial bid, best stormwater detention plans. one ensures that the property remains an asset to the landscape rather than a liability to the community.
