Best Permeable Pavers for Driveways: A Definitive Technical Guide

The modern driveway is increasingly being viewed through the lens of civil engineering rather than mere residential aesthetics. For decades, the standard approach to residential surfaces was dominated by the “seal and shed” philosophy, utilizing impervious materials like asphalt and poured concrete to move precipitation away from structures as rapidly as possible. Best Permeable Pavers for Driveways. However, the unintended consequences of this model—ranging from overwhelmed municipal storm sewers to the localized depletion of groundwater—have necessitated a shift toward source control. In this context, the driveway is no longer a static slab but a functional, hydrological system designed to process water where it falls.

Navigating the transition toward infiltration-ready infrastructure requires an understanding of the site as a living system. A permeable surface acts as the primary interface between the atmosphere and the sub-grade, demanding a sophisticated balance between structural load-bearing capacity and hydraulic conductivity. Choosing a system is a multi-generational commitment that dictates how a property interacts with the local water table and the surrounding ecosystem. This analysis moves beyond surface-level comparisons to examine the structural integrity and long-term performance dynamics that define high-performance permeable architecture.

The following exploration serves as a comprehensive reference for evaluating the mechanisms of water management at the residential scale. By shifting the focus from simple material selection to systemic integrity, property owners and designers can better evaluate the true utility of various infiltration strategies. This is an inquiry into the durability, risks, and economic realities of surfaces designed to mimic the natural world while supporting the heavy mechanical demands of modern transportation.

Understanding “best permeable pavers for driveways”

To define the best permeable pavers for driveways, one must first reject the notion of a universal gold standard. In the disciplines of civil engineering and high-end landscape architecture, “best” is a relative term defined by the convergence of load-bearing requirements, native soil percolation rates, and local climate stressors. A surface that excels in a pedestrian courtyard in a temperate zone would be a catastrophic failure if applied to a heavy-vehicle driveway in a region prone to deep-freeze cycles or heavy siltation from surrounding vegetation.

Common misunderstandings often stem from a failure to distinguish between porous materials and permeable systems. Porous materials, such as pervious concrete or porous asphalt, allow water to pass through the material’s internal cellular structure. Conversely, permeable interlocking concrete pavers (PICP) typically rely on solid units with engineered joints filled with specialized aggregates. High-performance evaluation requires looking beyond the visible top layer to the “entire assembly,” which includes the sub-base reservoir—the hidden layers of crushed stone that act as a temporary holding tank for storm events.

The oversimplification of these differences often leads to improper maintenance expectations. For example, assuming that all systems are equally resistant to “clogging” from organic debris or sand is a common pitfall. A truly superior option must account for the native soil’s “drawdown time”—the speed at which the ground below the stone base can absorb the stored water. If the soil is non-expansive clay with zero infiltration, even the most advanced paver will essentially function as a pond without the integration of secondary drainage components.

The Evolution of Hydrological Surface Design

The history of residential paving is a narrative of shifting priorities. Pre-industrial pathways were inherently pervious, composed of loose aggregates or natural earth. While functional for light traffic and naturally integrated with the water cycle, these surfaces were prone to erosion, mud, and structural instability under weight. The 20th-century obsession with asphalt and poured concrete was a response to the need for low-cost, high-speed transit and a “clean” aesthetic that prioritized the automobile over the ecosystem.

The unintended consequences of total sealing—urban heat islands, downstream flooding, and the “first flush” of pollutants (heavy metals and hydrocarbons) into waterways—have forced a re-evaluation of this model. Modern permeable design integrates 19th-century masonry techniques with 21st-century material science. By utilizing geotextiles, polymer stabilizers, and high-strength interlocking geometries, engineers have created surfaces that are as durable as traditional pavement while remaining hydrologically “invisible.” This represents a return to form, but with the benefit of advanced structural calculation.

Conceptual Frameworks and Mental Models

To effectively plan a project, designers utilize specific mental models to categorize the intent of the surface:

• The Reservoir Model: Here, the driveway is viewed as a subterranean tank. The stone sub-base is engineered with a specific void space (usually 30% to 40%) to hold a calculated volume of water. The goal is total retention, where 100% of a designated “design storm” is captured and allowed to migrate into the ground.

• The Peak Shaver Model: In ultra-dense urban environments with clay soils, total infiltration may be impossible. In this framework, the system acts as a “buffer,” slowing the water’s entry into the municipal storm sewer to prevent system overflows during the peak of a storm event.

• The Bio-Filter Model: In regions where groundwater protection is paramount, the system is designed primarily as a treatment facility. The layers of stone and specialized fabrics act as mechanical strainers, while microbial films within the aggregate layers break down hydrocarbons before they reach the water table.

Material Categories and Mechanical Trade-offs

When selecting among the various infiltration-ready systems, the decision falls into distinct material families, each with unique mechanical limits.

Comparison of Driveway Performance Dynamics

Material Type	Load Capacity	Infiltration Method	Maintenance Intensity	Primary Failure Mode
PICP (Interlocking)	Very High	Joint Aggregate	Low to Moderate	Joint Siltation
Pervious Concrete	Moderate	Internal Pores	High (Vacuuming)	Pore Collapse / Spalling
Porous Asphalt	High	Internal Pores	Moderate	Raveling / Pore Closure
Plastic Grid (Gravel)	Moderate	Open Cell	Moderate	Displacement / UV Damage

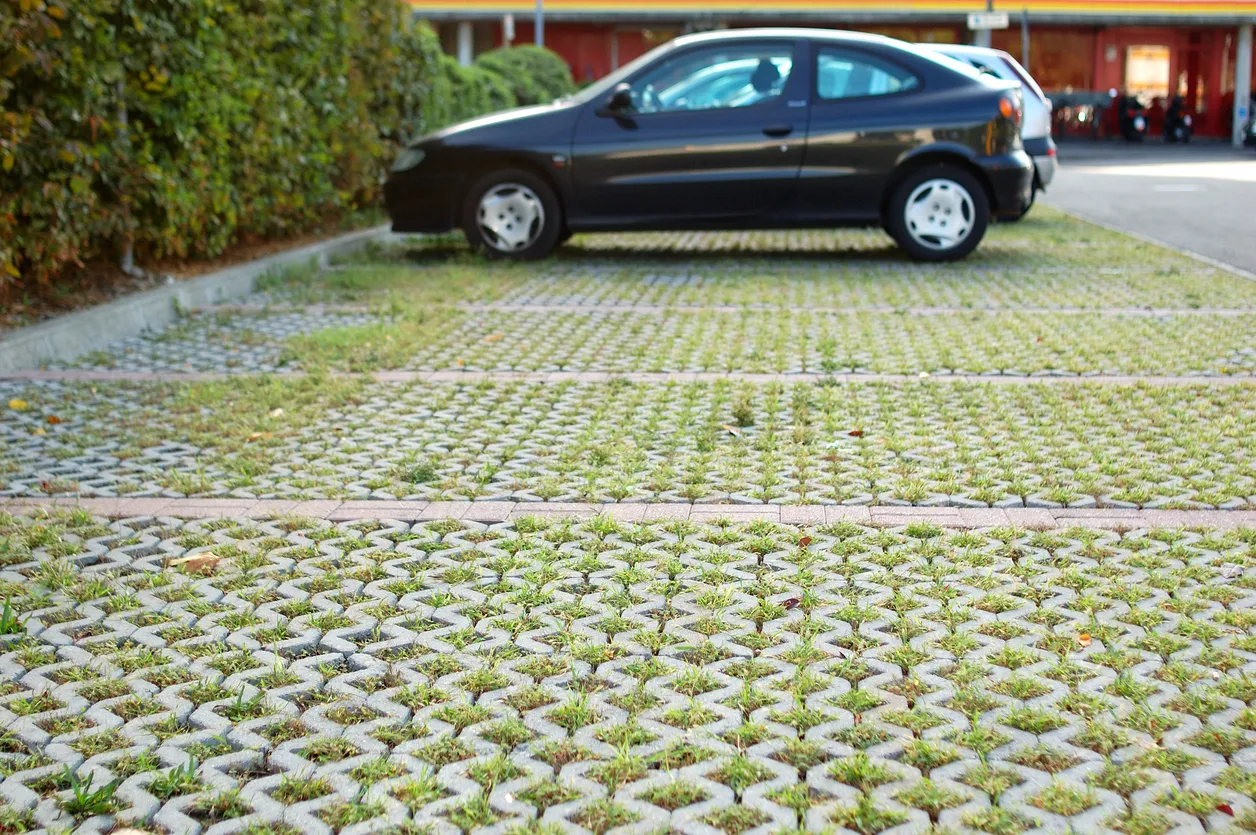

Concrete Turf Grids	High	Open Cell	Moderate (Grass)	Compaction / Weed Growth

1. Permeable Interlocking Concrete Pavers (PICP)

These consist of solid concrete units with wide, engineered joints filled with clear, crushed stone (usually ASTM No. 8 or No. 9 aggregate). This is often cited as the most resilient residential choice because the units themselves are incredibly strong, and the “permeability” is concentrated in the joints, which are easier to mechanically clean than the microscopic pores of concrete or asphalt.

2. Pervious Concrete

Unlike standard concrete, this mix omits “fines” (sand), creating a honeycomb structure. Best Permeable Pavers for Driveways. It is effective for large flatwork but is notoriously sensitive to installation errors. If the water-to-cement ratio is off by even a small percentage, the surface will either be too weak for vehicle weights or will “seal up” and lose its function during the finishing process.

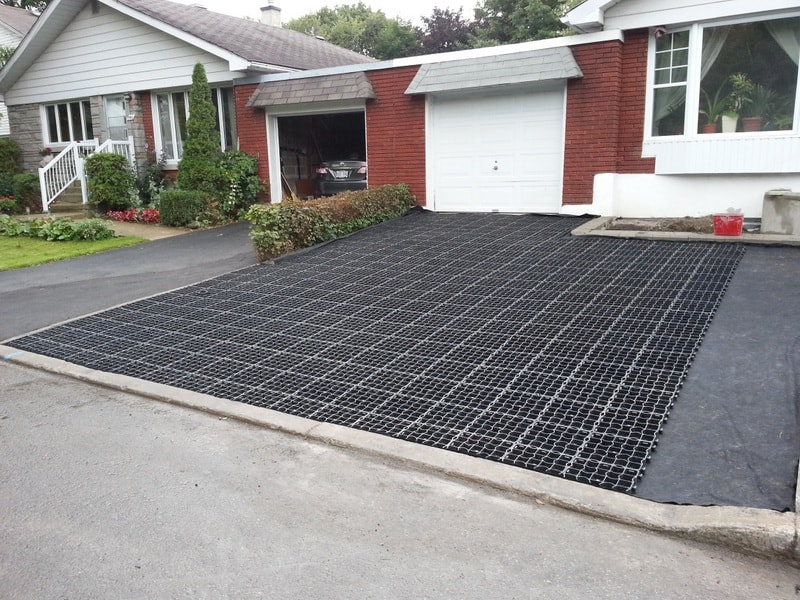

3. Cellular Confinement Systems (Plastic/Concrete Grids)

These systems use a grid structure to hold gravel or grass in place. While excellent for a “green” look, grass-filled versions rarely survive the heat and oil of a daily-use vehicle in a primary driveway. Gravel-filled plastic grids are highly effective but can suffer from “stone migration” if not properly edged.

Detailed Real-World Scenarios and Site Dynamics Best Permeable Pavers for Driveways

Scenario A: The High-Slope Residential Driveway

In this context, water velocity is the primary enemy. In a standard permeable installation on a slope, water within the stone reservoir will naturally migrate to the lowest point. This creates hydrostatic pressure at the bottom of the hill that can “blow out” the surface or destabilize retaining walls. The best solution here is a “benched” sub-base—creating subterranean dams in the stone layers to prevent all the water from rushing to the bottom of the hill.

Scenario B: The Coastal Property with Shallow Groundwater

When the groundwater is only 18 inches below the surface, a deep reservoir is impossible. The system must be designed as a “shallow detention” bed. This often requires an underdrain—a perforated pipe placed a few inches above the bottom of the stone—that redirects excess water to a secondary treatment area once the shallow reservoir hits capacity.

Scenario C: Heavy Vehicle Point Loading

For driveways that must accommodate delivery trucks or heavy SUVs, “point loading” is a major risk. Modular pavers are superior here, provided they are at least 80mm thick and installed in a herringbone pattern to distribute the horizontal shear forces generated by turning tires.

Planning, Cost, and Resource Dynamics

The economic evaluation of these systems must move beyond the “sticker price” of the material. While the initial investment is often 30% higher than traditional asphalt, the lifecycle savings—and the elimination of the need for secondary retention ponds—can make them more cost-effective.

Estimated Cost Ranges (Installed per Sq. Ft.)

Component	Cost Range (USD)	Variability Factors
Sub-Base Prep	$5.00 – $9.00	Soil excavation depth / Geotextile layers
Clean Aggregate	$3.00 – $6.00	Local availability of washed stone
Paver Surface	$12.00 – $25.00	Material thickness / Pattern complexity
Edge Restraint	$2.00 – $5.00	Concrete vs. Heavy-duty plastic rails

Risk Landscape and Failure Modes Best Permeable Pavers for Driveways

The primary threat to all permeable systems is siltation. This occurs when fine sediments—silt, sand, or organic mulch—fill the voids. In “porous” materials, this is often permanent. In interlocking systems, it can be mitigated by removing and replacing the top inch of joint stone.

Another compounding risk is chemical saturation. Because these systems are designed to put water back into the ground, a major oil or chemical spill on a permeable surface is an environmental emergency. The “sponge” that holds the water also holds the contaminant, making remediation significantly more expensive than on a sealed surface where the spill can be contained with booms.

Governance, Maintenance, and Long-Term Adaptation

A permeable surface is an “active” asset that requires a governance schedule rather than a “set and forget” mentality.

• Monthly: Visual inspection for debris accumulation (leaves, pine needles, or mulch wash-on).

• Seasonally: High-power leaf blowing to prevent organic matter from breaking down into “soil” within the joints or pores.

• Annually: Infiltration test. Pour 5 gallons of water in a small area; if it takes more than 60 seconds to disappear, the system is reaching its limit and requires professional maintenance.

• Bi-Annually: Professional regenerative air vacuuming for high-traffic sites to pull deep-seated fines out of the aggregate joints.

Common Misconceptions and Oversimplifications Best Permeable Pavers for Driveways

• Myth 1: They freeze solid in winter. Correction: Because water drains vertically, there is no surface water to freeze. Permeable driveways actually stay safer in winter because they don’t develop the “black ice” film common on asphalt.

• Myth 2: You never have to mow a grass-grid. Correction: If it’s grass, it still needs water, sun, and mowing. It is a lawn with a skeleton, not a maintenance-free surface.

• Myth 3: Any gravel works. Correction: Standard “crusher run” gravel contains “fines” that pack together and become as hard as concrete. Only “clean” or “open-graded” stone (ASTM No. 57) provides the necessary void space.

• Myth 4: They attract weeds. Correction: Weeds in permeable systems usually grow from the top down (seeds blowing into the joints) rather than from the bottom up. Regular blowing and occasional vinegar treatments solve this.

Measurement, Tracking, and Evaluation

Success in permeable design is measured through qualitative and quantitative signals. A “leading indicator” is the absence of standing water 30 minutes after a 1-inch rainfall event. A “lagging indicator” is the sustained health of nearby trees, which benefit from the localized groundwater recharge.

Documentation is critical for long-term adaptation. Property owners should maintain:

1. Infiltration Rate Logs: A baseline measurement taken at installation vs. annual checks.

2. Aggregate Top-up Records: Tracking how much joint stone is lost to snow plowing or wind.

3. Visual Silt Mapping: Identifying where “run-on” from adjacent gardens is depositing mud on the driveway.

Conclusion

The selection of the best permeable pavers for driveways is a transition from simple construction to environmental stewardship. It requires a departure from the “install and forget” mentality of the 20th century toward a more nuanced understanding of site hydrology and material science. While the complexities of sub-base engineering and the discipline of regular maintenance may seem daunting, the benefits—reduced flood risk, cooler urban environments, and a healthier water table—create a landscape that is resilient for decades. True authority in this space lies in the recognition that the most effective surface is the one that works in harmony with the ground beneath it.
